    Handling & Transport Information

    Nefalit Millboard should be transported flat and fully supported wherever possible. Avoid bending, flexing, or placing heavy items on unsupported areas, as this may cause cracking, corner damage, or breakage. Minor edge or corner damage can occur during handling and transport and does not normally affect the thermal or electrical insulation performance of the board.

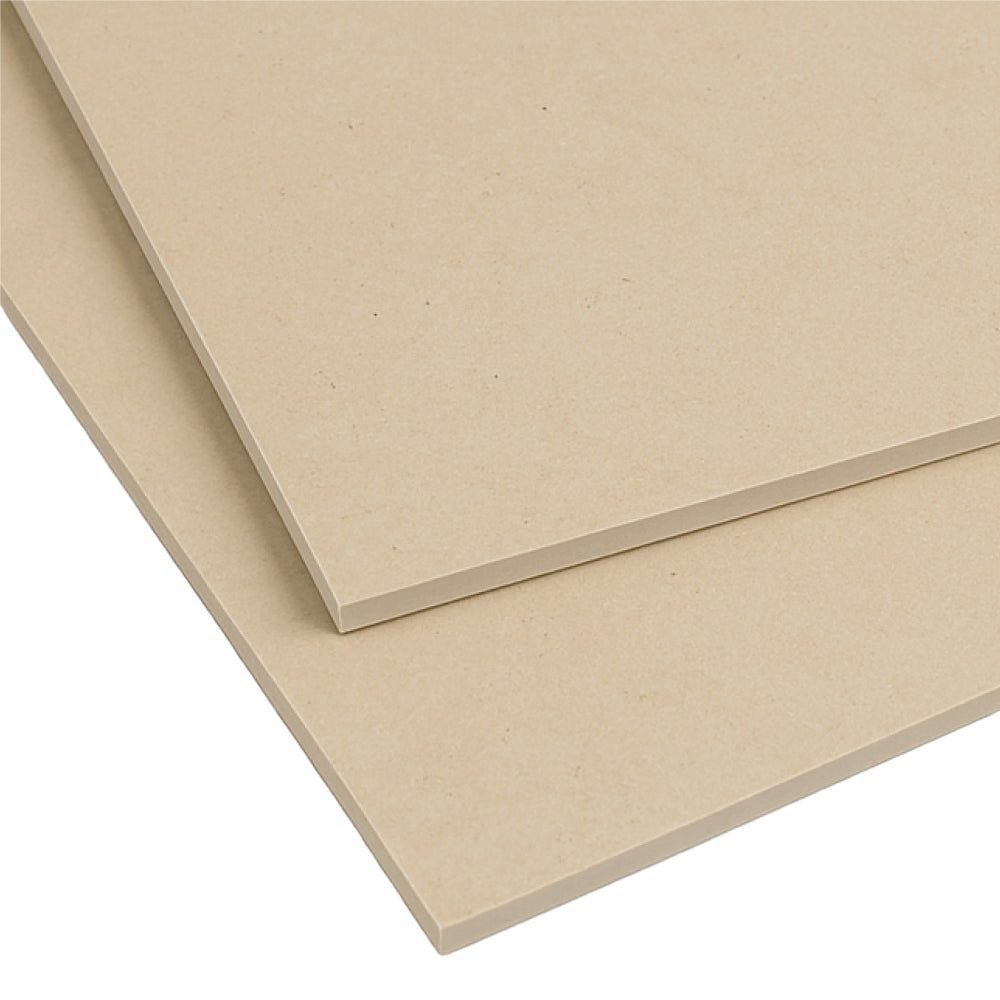

    Stacked sheets of non-asbestos millboard insulation, made from mineral wool fibre, designed for high-temperature resistance in thermal and electrical applications.
    HIGH TEMPERATURE BOARDS

    Nefalit Millboard – Non-Asbestos High-Temperature Insulation Board
    Machinable Thermal & Electrical Insulation Board for Industrial Applications

    Nefalit Millboard is a non-asbestos insulation board used across thermal and electrical applications where heat resistance, machinability, and reliable insulating performance are required. It is suitable for use in gasketing, fire protection, heat shielding, and electrical insulation across a wide range of industrial environments. For related insulation materials, see our full Thermal Insulation Materials collection.

    Common supply:
    Standard Nefalit 7 Bio millboard is typically supplied in 1000 × 1000 mm sheets with thicknesses of 5 mm, 6 mm, and 10 mm.

    6 mm is the most commonly stocked option, while 5 mm and 10 mm are usually supplied on request (carton quantities may apply).

    Other grades and thicknesses are available depending on application requirements — see the full grade & supply guide below for details.

    Key Features:

    • Material: non-asbestos millboard for thermal and electrical insulation applications
    • Standard board size: 1000 mm × 1000 mm
    • Machinable: can be drilled, sawn, cut, glued, and moulded for industrial applications
    • Suitable for: thermal insulation, gasketing, fire protection, and electrical insulation uses
    • Available in multiple grades: including Nefalit 7 Bio, Nefalit 11, Nefalit 16, and Nefalit Bio

    Typical Applications:

    • Furnace and boiler construction
    • Packings and gaskets
    • Electrical insulation boards
    • Heat shields and thermal barriers
    • Industrial equipment and general high-temperature insulation applications
    Freight Information

    If freight is required, this product is shipped securely on pallets to protect it during transport.

    Delivery can be arranged to a local freight depot for convenient customer collection — a common and straightforward option.

    If delivering directly to site, forklift access is typically required to unload the pallet. Full delivery options will be provided at quote stage.

    Before Requesting a Quote

    ↓ Review the Grade & Supply Guide below to identify the most suitable millboard grade for your application.

    ↓ Not sure how many boards you need? Use the Millboard Quantity Calculator further down the page.

    Need help estimating quantity? Use the Millboard Calculator below the grade table.

    Millboard Selection Guide

    Nefalit Millboard Grade & Supply Guide

    Nefalit 7 Bio is the standard grade most commonly supplied for general high-temperature insulation applications. Other grades are available on request and may be subject to supplier availability or minimum order quantities.

    Stocked thickness: 6mm
    Other thicknesses & grades: Available on request
    Grade Temperature Rating Best Suited For Common Thicknesses / Size ATS Supply Notes
    Nefalit 7 Bio Up to 850 °C Standard grade for most general high-temperature thermal and electrical insulation applications 1000 mm × 1000 mm boards
    5 mm, 6 mm and 10 mm thickness options    		 Primary stocked grade
    6 mm stocked — supplied per board or per carton (17 sheets)
    5 mm and 10 mm available on request — supplied per carton only
    Nefalit Bio Up to 1200 °C Higher temperature applications requiring a bio-soluble millboard grade Please enquire with required thickness Available on request
    Bulk orders only - long lead times apply
    Nefalit 11 Up to 1100 °C Applications requiring greater strength than the standard grade 1000 mm × 1000 mm boards
    5 mm and 10 mm thickness options    		 Available on request
    Minimum orders may apply
    Nefalit 16 Up to 1200 °C Higher temperature applications requiring increased density and strength 1000 mm × 1000 mm × 10 mm Available on request
    Minimum orders may apply
    NEFALIT MILLBOARD CALCULATOR

    Estimate millboard requirements

    Choose the option that best suits your project.

    Standard board size: 1000 mm × 1000 mm
    Coverage per board: 1 m²
    Compare High Temperature Boards

    Is Millboard the right option?

    Millboard is best suited where a machinable thermal insulation board is required for gaskets, heat shields, fabricated components or electrical insulation. If you need greater rigidity, higher temperature resistance, or a lightweight board for extreme heat, one of the alternatives below may be more suitable.

    Product Best For Temperature Rating Handling / Structure
    Millboard Machined parts, gaskets, heat shields and electrical insulation Up to 850°C for primary stocked grade Machinable board — transport flat
    Calcium Silicate Board Rigid structural insulation for general high-temperature applications 1100°C Rigid board — transport flat
    Ceramic Fibre Board Lightweight insulation for very high temperatures and thermal shock environments 1260°C+ Lightweight and fragile — transport flat
    Superwool Plus Board Advanced lightweight insulation with improved handling characteristics 1200°C classification / 1000°C continuous Lightweight board with improved handling characteristics

    Need a rigid board for ovens, furnaces or pizza oven insulation? Consider Calcium Silicate Board. For lightweight high-temperature insulation, see Ceramic Fibre Board or Superwool Plus Board.

    Not sure which board you need?
    Request a recommendation and quote
    Tell us about your application and we'll recommend the most suitable board.
