Calcium Silicate, Millboard & Ceramic Boards | ATS

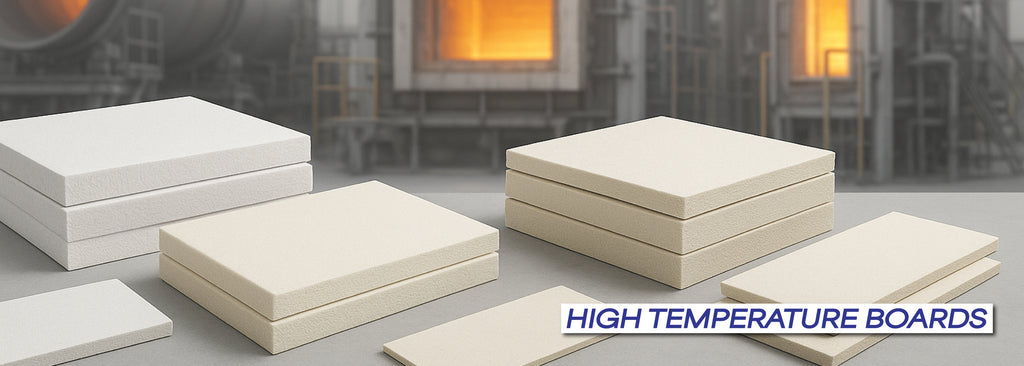

High Temperature Insulation Boards

Board materials designed for higher temperature thermal insulation applications, including calcium silicate, millboard and ceramic fibre board for furnaces, heaters, kilns, ovens and industrial equipment.

Quick guide

Calcium Silicate

HIGH TEMPERATURE BOARD

Best for: Rigid structural insulation

Temperature rating: 1100°C

Handling: Transport flat

Millboard

HIGH TEMPERATURE BOARD

Best for: Machined parts & electrical insulation

Temperature rating: 850°C

Handling: Transport flat

Ceramic Fibre

HIGH TEMPERATURE BOARD

Best for: General extreme heat insulation

Temperature rating: 1260°C+

Handling: Fragile – transport flat

Superwool Plus

HIGH TEMPERATURE BOARD

Best for: Advanced lightweight insulation

Temperature rating: 1200°C

Handling: Improved handling characteristics

Not sure which board suits your project?

Use this guide to compare high temperature insulation boards and identify the right option for your application.

› Open selection guide

1. Does it need to support load or stay rigid?

Calcium Silicate Board is typically used where structural stability, rigidity and back-up insulation are required.

2. Do you need to cut, drill or machine the board?

Millboard is commonly used for machinable thermal and electrical insulation, including gaskets, heat shields and fabricated components.

3. Are you working at very high temperatures (above ~1100°C)?

Ceramic Fibre Board is best suited for very high temperature insulation, thermal shock resistance and lightweight heat containment.

4. Looking for a premium lightweight insulation board?

Superwool Plus Board provides lightweight high-temperature insulation with improved handling characteristics and excellent thermal performance.

Quick comparison

Calcium Silicate Board → rigid, load-bearing insulation for general high-temperature applications
Millboard → machinable board for gaskets, heat shields and electrical insulation
Ceramic Fibre Board → lightweight insulation for very high temperatures and thermal shock environments
Superwool Plus Board → advanced lightweight insulation with excellent thermal performance and improved handling characteristics

Special applications

Glastherm HT is available for structural, load-bearing insulation applications where compressive strength is more important than maximum temperature resistance.

Still not sure? Click on the "Request Recommendation & Quote" button at the bottom of the page and we'll recommend the right option.

Stacked calcium silicate thermal insulation boards 25 mm × 610 mm × 1000 mm rated to 1000 °C for industrial high-temperature applications

Calcium Silicate Board Rigid insulation for furnaces, kilns & wood-fired pizza ovens

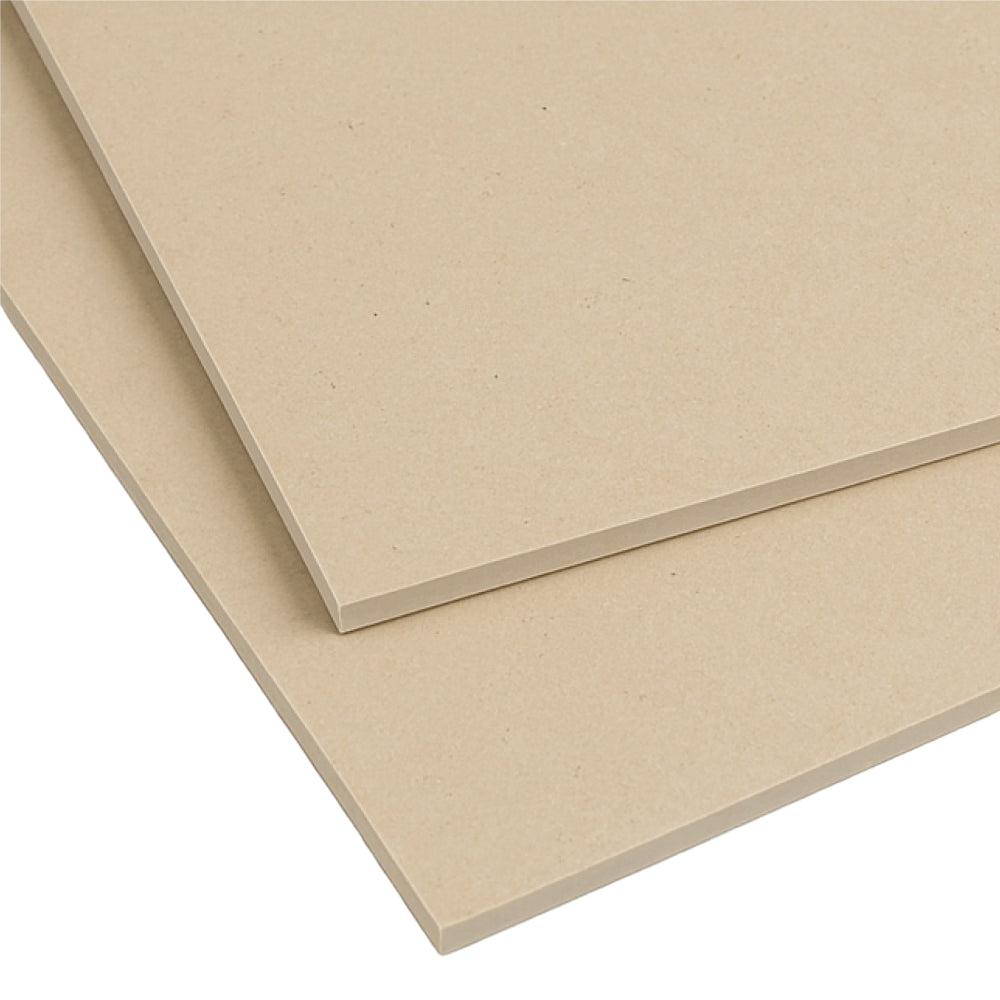

Stacked sheets of non-asbestos millboard insulation, made from mineral wool fibre, designed for high-temperature resistance in thermal and electrical applications.

Nefalit Millboard Durable electrical & thermal backing insulation board

Fibrefrax Duraboard ceramic fibre insulation boards for high-temperature thermal stability up to 1260 °C, ideal for industrial environments with vibration and thermal shock exposure

Ceramic Fibre Board Lightweight high-temperature insulation for extreme heat applications

Superwool® Plus Board Advanced high-temperature insulation board

Not sure which board you need?

Request a recommendation and quote

Tell us about your application and we’ll recommend the most suitable board.

Handling & Transport Information

High temperature insulation boards should be transported flat and fully supported wherever possible. Transporting boards on edge or without adequate support may result in edge damage, cracking, or breakage. Minor edge chipping can occur during handling and transport and does not normally affect the thermal performance of the board.

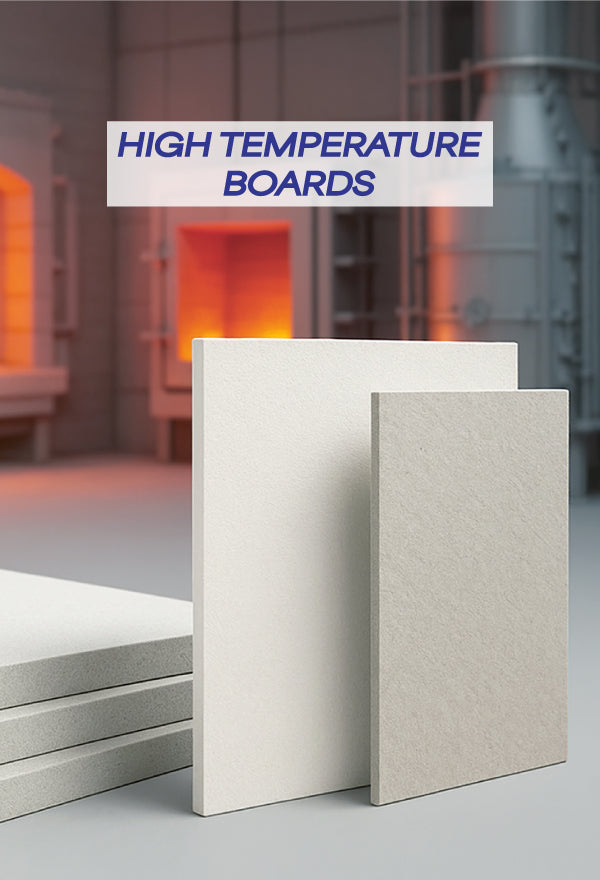

High Temperature Insulation Boards

Our high temperature insulation boards are engineered for heat shielding, refractory linings, and equipment protection in demanding thermal environments. The range includes calcium silicate boards for structural insulation and load-bearing applications, ceramic fibre boards for lightweight, high-temperature performance, millboard for economical heat shielding and electrical insulation, and Glastherm HT for high compressive strength insulation in tooling, moulds, and press applications.

Suitable for kilns, boilers, ovens, furnaces, and high-temperature tooling systems, these rigid boards provide thermal stability, mechanical strength, and resistance to thermal shock. Boards are available in standard sizes and can be cut or machined to meet your specifications. For alternative materials, visit our Thermal Insulation Materials collection.
