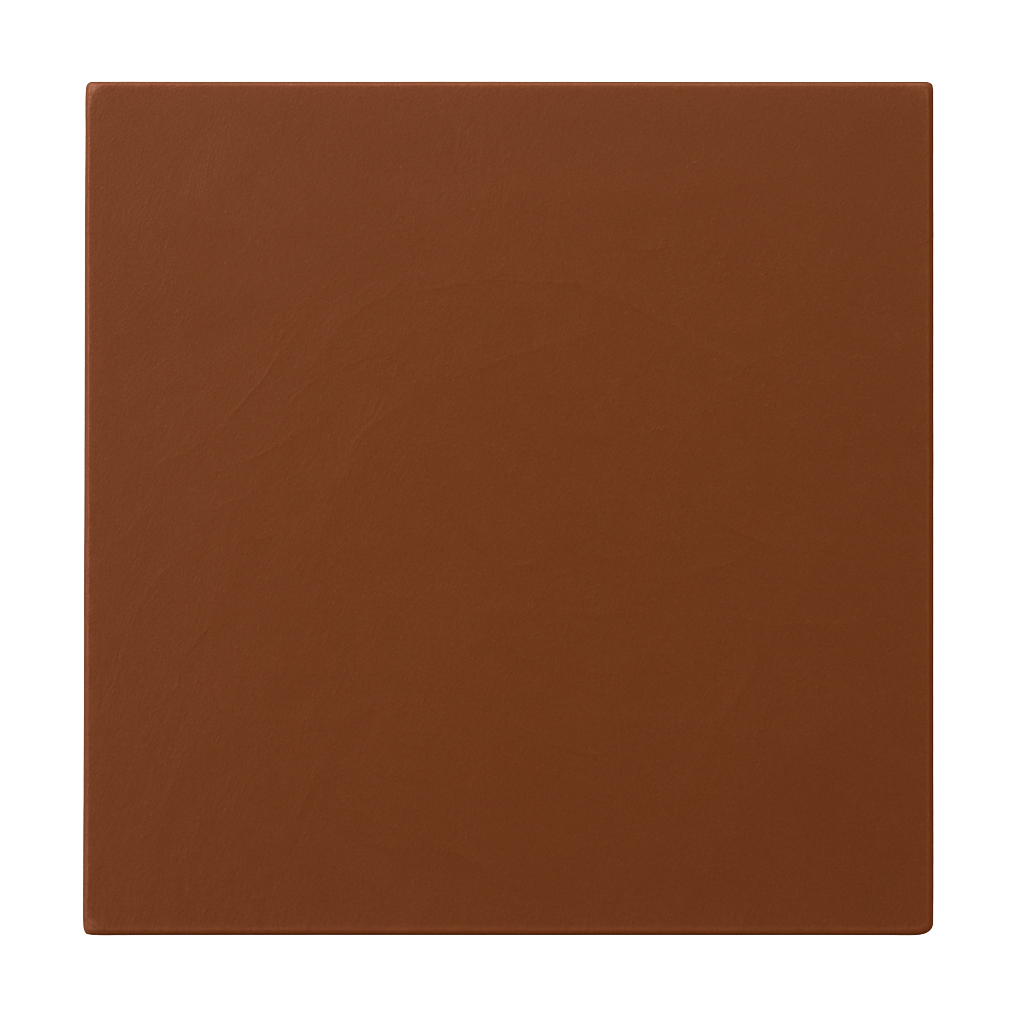

HT2 Glass Rigid Laminate for Electrical Insulation

Product Highlights:

• Available Thicknesses: 0.8mm, 1mm, 2mm, 3mm, 5mm, 6mm, 10mm
  (These are standard thicknesses — custom thicknesses also available on request via the quote form)
• Temperature Resistance: Operates reliably up to 185°C
• Sheet Dimensions: 1830 mm x 1220 mm

HT2 Glass Rigid Laminate is a high-performance fibreglass-reinforced material designed for superior electrical insulation in high-temperature applications. With a heat resistance of up to 185°C, it’s ideal for use in transformers, motor insulation, and industrial electrical systems.

Known for its excellent mechanical strength, dimensional stability, and resistance to electrical arcing, HT2 Glass offers dependable performance under demanding conditions. A wide range of thicknesses is available to suit various project requirements.

Need components machined to size? Visit our CNC Machining Services or view our full Rigid Laminate Sheets range.

Looking for similar materials? Consider G10 Epoxy Laminate for added moisture resistance or FR4/G11 for higher dielectric strength.
