High Temp Non-Adhesive Electrical Tapes | Advanced Thermal

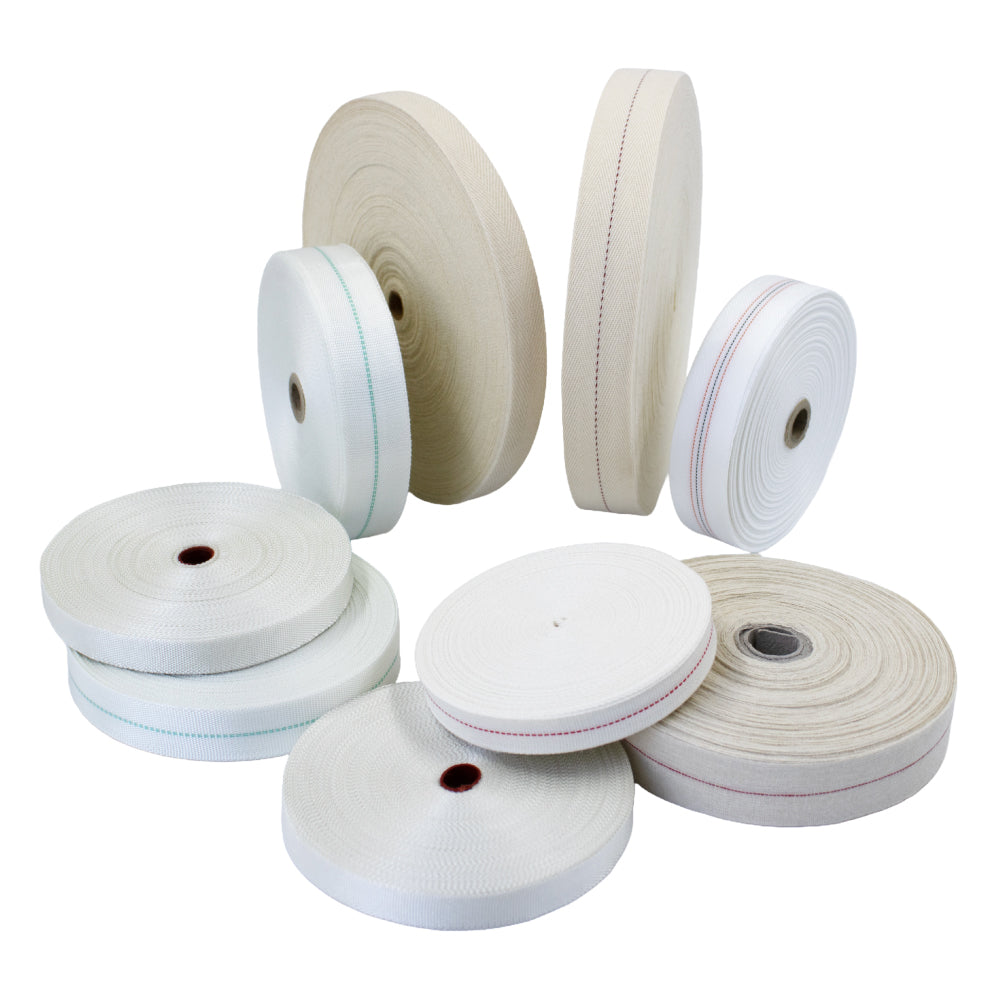

Electrical Insulation Tapes

Browse our range of high-temperature electrical insulation tapes for motor rewinding, transformer manufacture, coil binding and electrical equipment repair. Choose from glass tapes, cotton tapes, polyester tapes, glass mica tapes and anti-condensation heater tapes to suit a wide range of industrial applications.

Which Electrical Insulation Tape Should I Choose? Compare temperature ratings, materials and common applications.

The right electrical insulation tape depends on the required operating temperature, material and application. Use the quick guide and comparison table below to select a suitable tape for motor rewinding, transformer manufacture, coil binding, winding reinforcement or moisture protection.

Need the Highest Temperature Rating?

Choose Plain Woven Glass Tape for applications requiring continuous operation up to 155°C (Class F).

Which Material Should I Choose?

Choose fibreglass for higher temperatures, polyester for strength and abrasion resistance, or cotton for traditional coil binding and motor rewinding.

What Are You Trying to Do?

Use woven tapes for insulation, binding and reinforcement. Choose Anti-Condensation Heater Tapes when the priority is preventing moisture inside motors and generators.

Electrical Insulation Tape Comparison

Compare the available temperature classes, materials and recommended uses across the ATS range.

Product	Temperature Rating	Material	Best For
Plain Woven Glass Tape	155°C Class F	Woven fibreglass	High-temperature motor rewinding, transformer insulation, coil insulation, slot insulation and electrical equipment.
Plain Woven Terylene Polyester Tape	130°C Class B	Woven polyester	General motor rewinding, transformer manufacture, coil insulation and durable electrical winding support.
Grey Egyptian Cotton Tape	105°C Class A	Woven Egyptian cotton	Flexible coil wrapping, traditional motor rewinding, transformer assembly and winding reinforcement.
Plain Cotton Webbing Tape	105°C Class A	Cotton webbing	Heavy-duty coil binding, winding reinforcement, motor repair and transformer manufacture.
Anti-Condensation Heater Tapes	Application dependent	Flexible electric heater tape	Preventing internal condensation, corrosion and insulation failure in electric motors, generators and rotating equipment.

Still unsure? Tell us your operating temperature, equipment type and application, and we'll recommend the most suitable electrical insulation tape for your job.

Plain woven glass electrical insulation tape for 155°C Class F motor rewinding and transformer insulation

Plain Woven Glass Tape

155°C Class F Electrical Insulation Tape

High-temperature woven fibreglass tape with excellent dielectric strength, mechanical durability and thermal stability for motor rewinding, transformer manufacture and slot insulation.

Temperature Rating: 155°C (Class F)

Roll Length: 50 metres

Available Widths: 12mm, 20mm, 25mm & 50mm

View Product

Plain woven terylene polyester electrical insulation tape for 130°C Class B motor rewinding and transformer applications

Plain Woven Terylene Polyester Tape

130°C Class B Electrical Insulation Tape

Durable woven polyester tape offering excellent mechanical strength, abrasion resistance and flexibility for motor rewinding, transformer manufacture and general electrical insulation.

Temperature Rating: 130°C (Class B)

Roll Length: 50 metres

Available Widths: 12mm, 20mm & 25mm

View Product

Grey Egyptian cotton electrical insulation tape for 105°C Class A motor rewinding, coil binding and transformer assembly

Grey Egyptian Cotton Tape

105°C Class A Electrical Insulation Tape

Soft, flexible woven cotton tape that conforms easily around coils and irregular components while providing dependable mechanical support and electrical insulation.

Temperature Rating: 105°C (Class A)

Roll Length: 50 metres

Available Widths: 12mm, 16mm, 20mm & 25mm

View Product

Plain cotton webbing electrical insulation tape for 105°C Class A motor rewinding, coil binding and transformer manufacture

Plain Cotton Webbing Tape

105°C Class A Electrical Insulation Tape

Heavy-duty woven cotton tape providing excellent strength and flexibility for securing electrical windings, reinforcing coils and supporting transformer and motor repair applications.

Temperature Rating: 105°C (Class A)

Roll Length: 55 metres

Available Widths: 13mm, 20mm, 25mm & 32mm

View Product

Anti-Condensation Heater Tapes

Moisture Protection for Electric Motors & Rotating Equipment

Flexible electric heater tapes designed to maintain motor temperature above the dew point, helping prevent condensation, corrosion, electrical shorts and premature insulation failure.

Moisture Protection: Maintains surface temperature above the dew point

Flexible Construction: Wraps around motors, generators and machinery

Common Uses: Electric motors, generators, compressors and rotating equipment

View Product
