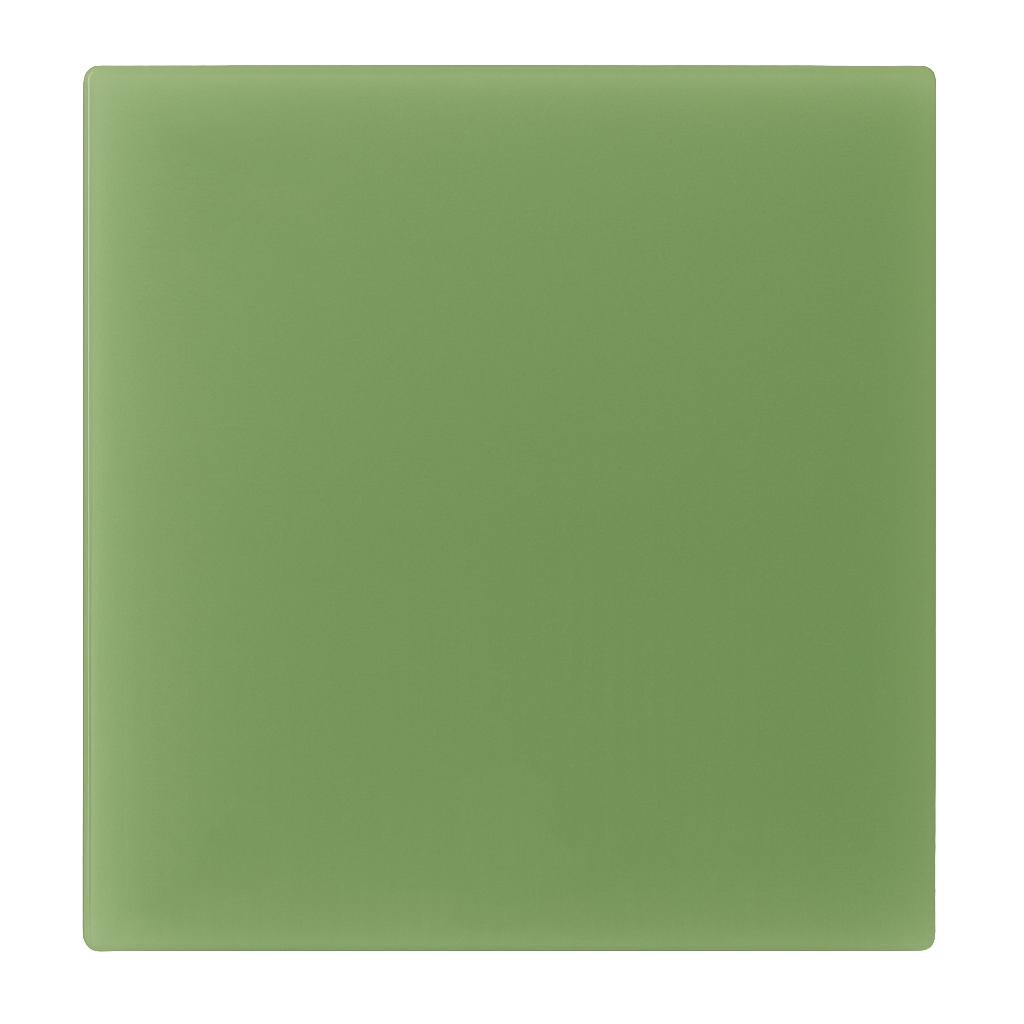

G10 Epoxy Rigid Laminate
Electrical Insulation & Mechanical Stability

G10 epoxy rigid laminate is a versatile and reliable material designed for electrical insulation applications. Renowned for its exceptional mechanical strength and thermal resistance, this laminate is ideal for demanding environments.

• Available Thicknesses: 0.5mm, 0.8mm, 1mm, 1.5mm, 2mm, 2.5mm, 3mm, 5mm, 6mm, 8mm, 10mm, 12mm, 16mm, 20mm, 25mm, 50mm, 65mm
  (These are standard thicknesses — custom thicknesses also available on request via the quote form)
• Temperature Resistance: Operates efficiently up to 155°C
• Sheet Dimensions: 1220mm x 915mm

Key Benefits

• Excellent electrical insulation properties
• High mechanical strength, even in humid conditions
• Superior resistance to chemicals and moisture
• Easy to machine for custom applications

Available in a wide range of thicknesses to suit various industrial and electrical applications, G10 epoxy laminate is the ideal choice for projects requiring durability and reliability.

This material can be supplied as laminate sheets and cut panels or machined into custom components to meet project-specific requirements.

Need an alternative with higher thermal performance? Consider our ESP Glass Rigid Laminate or FR4/G11 Epoxy Laminate for elevated dielectric and flame resistance.
