    ELECTRICAL INSULATION VARNISH

    3GK Red Anti-Tracking Varnish Spray Class H Electrical Insulation in a Durable Red Aerosol Coating

    3GK Red Anti-Tracking Varnish Spray is a professional Class H electrical insulating aerosol designed to protect electrical components from moisture, oil, dust and surface tracking. Available as individual 400 ml aerosol cans or economical cartons of 12, it provides a fast, convenient solution for electrical maintenance, motor rewinding and industrial repair workshops.

    Suitable for electric motors, transformers, coils, terminals and electrical assemblies, this fast-drying insulating varnish delivers a durable red protective coating wherever brush or dip varnishes are impractical. The high-visibility finish also makes treated components easy to identify during servicing, inspection and quality control.

    Key Features:

    • Class H Electrical Insulation: Provides dependable insulation for high-temperature electrical applications.
    • Anti-Tracking Protection: Helps reduce electrical tracking caused by moisture, contamination and electrical stress.
    • Quick-Drying Formula: Fast-curing coating helps minimise downtime during maintenance and repairs.
    • Oil & Moisture Resistant: Protects electrical components operating in harsh workshop and industrial environments.
    • High-Visibility Red Finish: Makes coated components easy to identify during servicing and inspection.
    • Flexible Purchase Options: Available individually or in cartons of 12 for workshops and higher-volume users.

    Applications:

    • Electric motor rewinding
    • Motor windings and coils
    • Transformer maintenance
    • Electrical terminals and connections
    • Switchboards and control panels
    • General electrical maintenance and repairs

    Whether you require a single aerosol for maintenance work or a carton of 12 for regular workshop use, 3GK Red Anti-Tracking Varnish Spray provides reliable Class H electrical insulation and long-lasting anti-tracking protection. Contact us for pricing, availability or assistance selecting the right electrical insulating varnish for your application.

    Need more technical information?
    Scroll below for detailed technical specifications, drying & cure information, application methods, workshop tips, standards & performance, and frequently asked questions.
    FAST SHIPPING
    Australia-wide
    QUALITY
    Products
    EXPERT
    Advice
    AUSTRALIAN
    Owned
    Drying & Cure Guide ▾

    Typical drying and curing information for 3GK electrical insulating varnishes. Times may vary depending on film thickness, component size, airflow and workshop conditions.

    Touch Dry

    15 min

    Surface becomes touch dry at approximately 21°C.

    Handleable

    45–60 min

    Components can usually be handled carefully after this stage.

    Full Cure

    24–48 hrs

    Full cure at ambient temperature for maximum developed properties.

    Heat Cure

    2–3 hrs

    Accelerated cure by heating components at approximately 80°C.

    Workshop note:
    Heavily taped, tightly wound or larger components may retain solvent for longer. Heat curing can help reduce the risk of solvent entrapment and speed up final cure.
    Application Method ▾

    3GK Red Anti-Tracking Varnish Spray is supplied in a convenient ready-to-use aerosol for fast, clean application. It's ideal for maintenance, electrical repairs and motor rewinding where brush or dip varnishing is impractical.

    Spray Application

    Apply light, even coats from approximately 20–30 cm away. Suitable for motors, coils, terminals, switchgear and electrical components where fast, convenient insulation protection is required.

    Application note:
    Shake the can thoroughly before use. Apply several light coats rather than one heavy coat, allowing adequate drying time between coats. Ensure surfaces are clean, dry and free from oil, grease and contaminants before spraying.
    Workshop Tips ▾

    Following good spray application practices helps produce a more consistent insulating coating, improved coverage and reliable electrical insulation performance.

    Shake Thoroughly

    Shake the aerosol well before use to ensure the varnish and pigments are evenly mixed for consistent coverage.

    Apply Light Coats

    Several light coats provide a smoother, more uniform finish than one heavy application and help minimise runs.

    Maintain Spray Distance

    Hold the can approximately 20–30 cm from the surface and use smooth, even passes for consistent coverage.

    Allow Drying Between Coats

    Allow adequate drying time between coats and always apply the product in a well-ventilated area away from ignition sources.

    Good workshop practice:
    Ensure the surface is clean, dry and free from oil, grease and contaminants before spraying. Drying times will vary depending on coating thickness, ambient temperature and humidity. Always allow the coating to fully cure before returning electrical equipment to service.
    Standards & Performance ▾

    3GK Red Anti-Tracking Varnish Spray is part of the Ultimeg 2000-372 anti-tracking enamel and varnish range, designed to provide a tough, insulating seal for electrical equipment exposed to moisture, contamination and demanding operating conditions.

    Class B & F Systems

    Suitable for use in Class B and Class F insulating systems, according to the supplied technical data.

    BS EN 600464

    The cured product conforms to BS EN 600464 Type 1.1 / IEC 600464.

    Dielectric Strength

    Tested to ASTM D115, with dielectric strength listed at 72 kV/mm for the cured varnish.

    Anti-Tracking Protection

    Designed to seal electrical leakage paths and help protect equipment from surface tracking in difficult environments.

    Performance note:
    Published performance data is based on the manufacturer's technical information for the Ultimeg 2000-372 anti-tracking enamel and varnish range. Actual performance will depend on surface preparation, application thickness, cure conditions and the operating environment.
    Frequently Asked Questions ▾
    Can I use 3GK Red Anti-Tracking Varnish Spray for motor rewinding?
    Yes. 3GK Red is suitable for electrical insulation applications including motor rewinding, coils, terminals, transformers and other electrical components requiring a protective anti-tracking coating.
    When should I choose an aerosol varnish instead of liquid varnish?
    Aerosol varnish is ideal for maintenance, touch-ups, small repairs and hard-to-reach areas. Liquid varnishes are better suited to dip impregnation, brush application and larger workshop or production jobs.
    How should I apply 3GK Red spray varnish?
    Ensure the surface is clean, dry and free from grease or contaminants. Shake the can thoroughly, then apply light, even coats from approximately 20–30 cm away. Several light coats are usually better than one heavy coat.
    How long does 3GK Red take to dry?
    Typical drying times are approximately 15 minutes touch dry, 45–60 minutes handleable and around 24–48 hours for full ambient cure. Drying time may vary depending on coating thickness, temperature, humidity and airflow.
    Why choose red anti-tracking varnish?
    Red varnish provides a visible protective coating, making it easier to identify treated areas during servicing, inspection and quality control. It is often chosen where visual confirmation of coating coverage is useful.
    Technical data

    3GK Red Technical Specifications

    Key technical information for 3GK Red Anti-Tracking Varnish Spray.

    Product type Anti-tracking air-drying alkyd insulating varnish aerosol
    Colour Red
    Pack size 400 ml aerosol can (also available in cartons of 12)
    Temperature class Class H, 180°C
    UL recognition UL File No. E220579
    Application method Ready-to-use aerosol spray
    Flash point 27°C
    Shelf life 12 months at 21°C
    Touch dry Approximately 15 minutes at 21°C
    Handle dry 45–60 minutes at 21°C
    Full cure 24–48 hours at ambient temperature, or 2–3 hours at 80°C

    Compare Our Electrical Insulation Varnish Range

    Choose from aerosol varnishes for quick repairs and maintenance, or 5 litre liquid varnishes for motor rewinding, coil impregnation and workshop applications.

    Spray Varnishes

    Best for touch-ups, maintenance, hard-to-reach areas and smaller electrical insulation repairs.

    • Aerosol application
    • Anti-tracking protection
    • Quick workshop use

    Liquid Varnishes

    Best for motor rewinding, coil coating, brush application and larger workshop insulation work.

    • 5 litre workshop packs
    • Motor winding protection
    • Coil and transformer applications

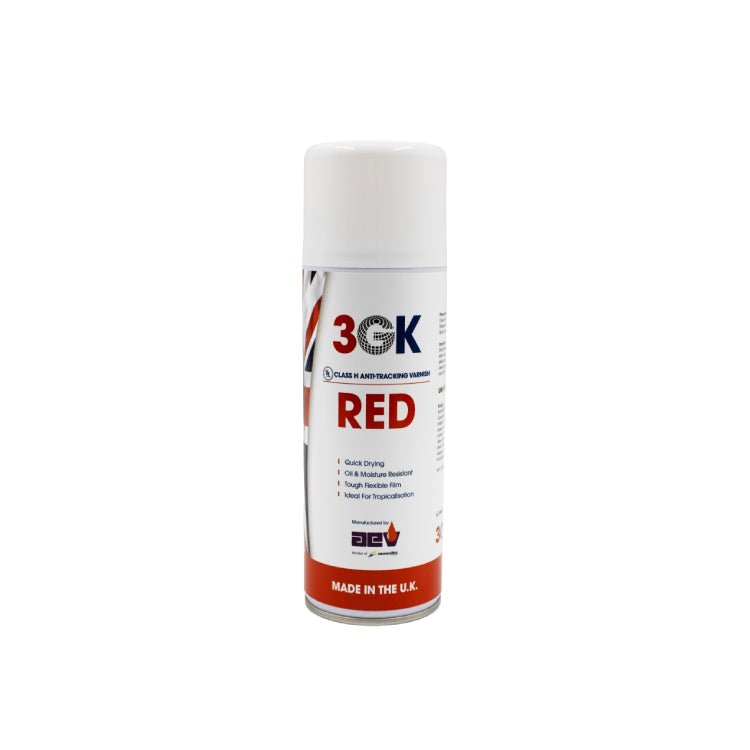

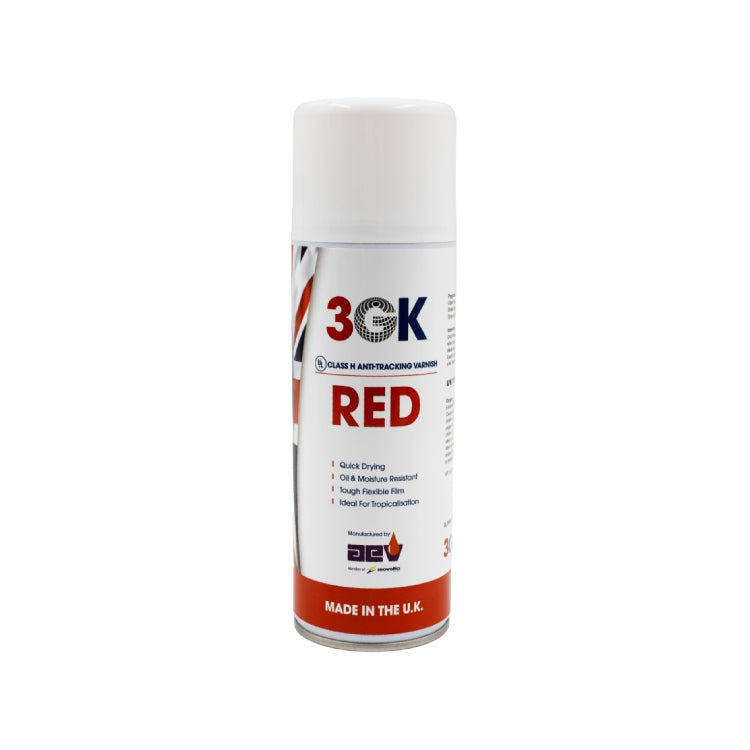

    3GK Red Class H Anti-Tracking Varnish Spray 400ml aerosol can
    3GK Red Anti-Tracking Varnish Spray – 400ml

    Class H red aerosol varnish for electrical insulation repairs and maintenance.

    Ultimeg 2000/372 Clear Anti-Tracking Varnish Spray 400ml aerosol can
    Ultimeg 2000/372 Clear Anti-Tracking Varnish Spray – 400ml

    Clear Class H aerosol varnish for anti-tracking protection and touch-ups.

    Ultimeg 2000-372 Red Alkyd Insulating Varnish 5L drum front view
    Ultimeg 2000-372 Red Alkyd Insulating Varnish – 5L

    Durable red insulating varnish for motors, transformers and electrical windings.

    Ultimeg 2000/372 Clear Alkyd Insulating Varnish 5L metal can front view
    Ultimeg 2000/372 Clear Alkyd Insulating Varnish – 5L

    Clear Class H insulating varnish for motor rewinding and electrical repairs.
