Name: Fibreglass Adhesive Tape – 155°C Electrical Insulation Tape
Brand: Advanced Thermal Supplies
Availability: InStock

Electrical Insulation Tape

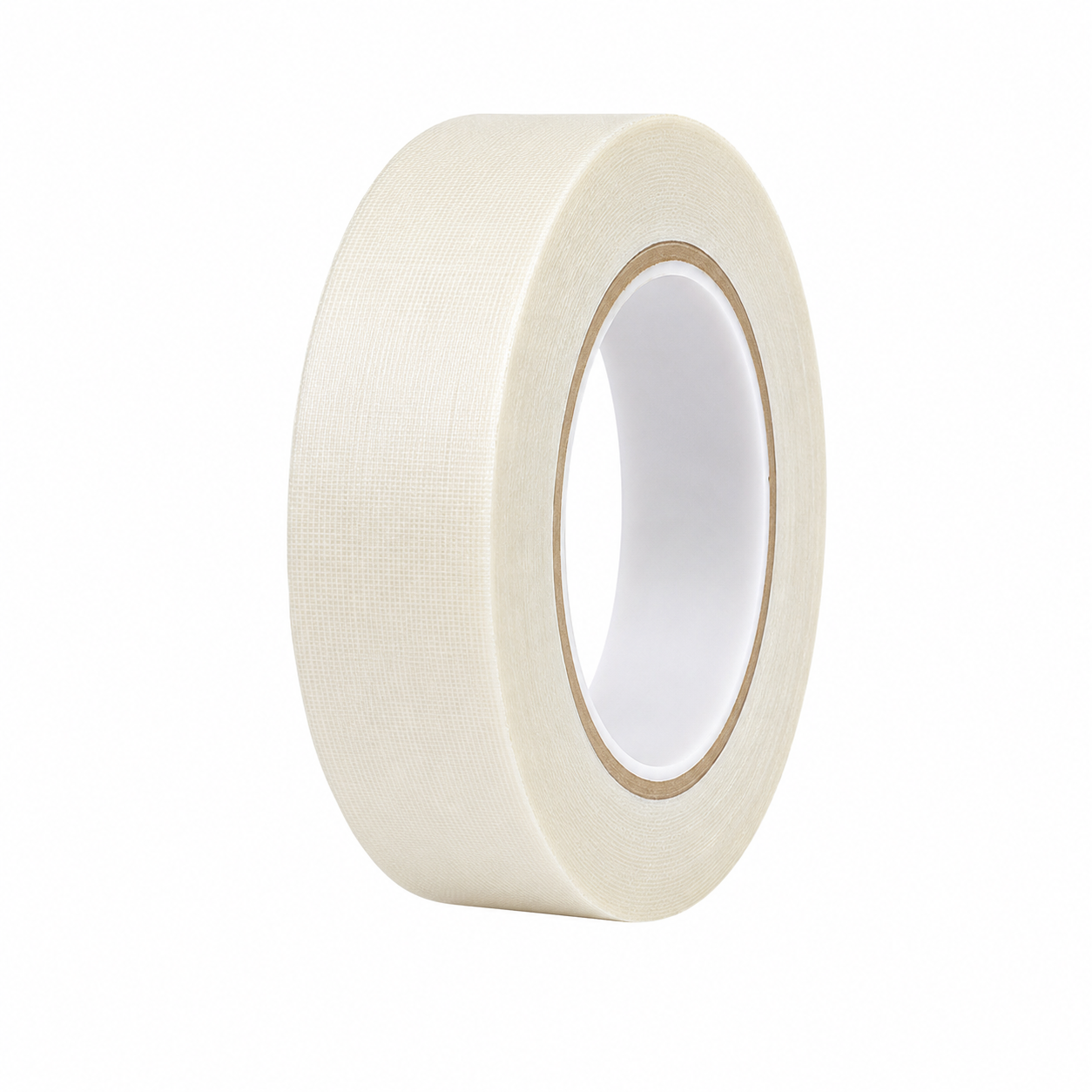

Fibreglass Adhesive Tape – 155°C Electrical Insulation Tape Woven Glass Electrical Tape for Motor Rewinding & Transformer Applications

ATS Fibreglass Tape is a woven glass electrical insulation tape designed for high-temperature electrical applications where excellent mechanical strength, dimensional stability and dielectric performance are required. The tightly woven construction provides reliable insulation while remaining flexible enough to wrap coils, windings and electrical components.

Rated for continuous service up to 155°C (Class F), fibreglass tape is widely used for motor rewinding, transformer manufacture, coil wrapping, slot insulation, lead restraint and general electrical insulation.

Available in ½", ¾", 1", 1½" and 2" widths, supplied in 50 metre rolls. Custom slit widths are also available (minimum order quantities may apply).

Common Applications

Electric motor rewinding
Transformer manufacturing
Coil wrapping
Slot insulation
Lead bundling
General electrical insulation

Specifications

Temperature Rating	155°C (Class F)
Roll Length	50 metres
Available Widths	½", ¾", 1", 1½", 2"
Custom Widths	Available (minimum order quantities may apply)
Applications	Motor rewinding, transformers, coils, slot insulation and electrical insulation
