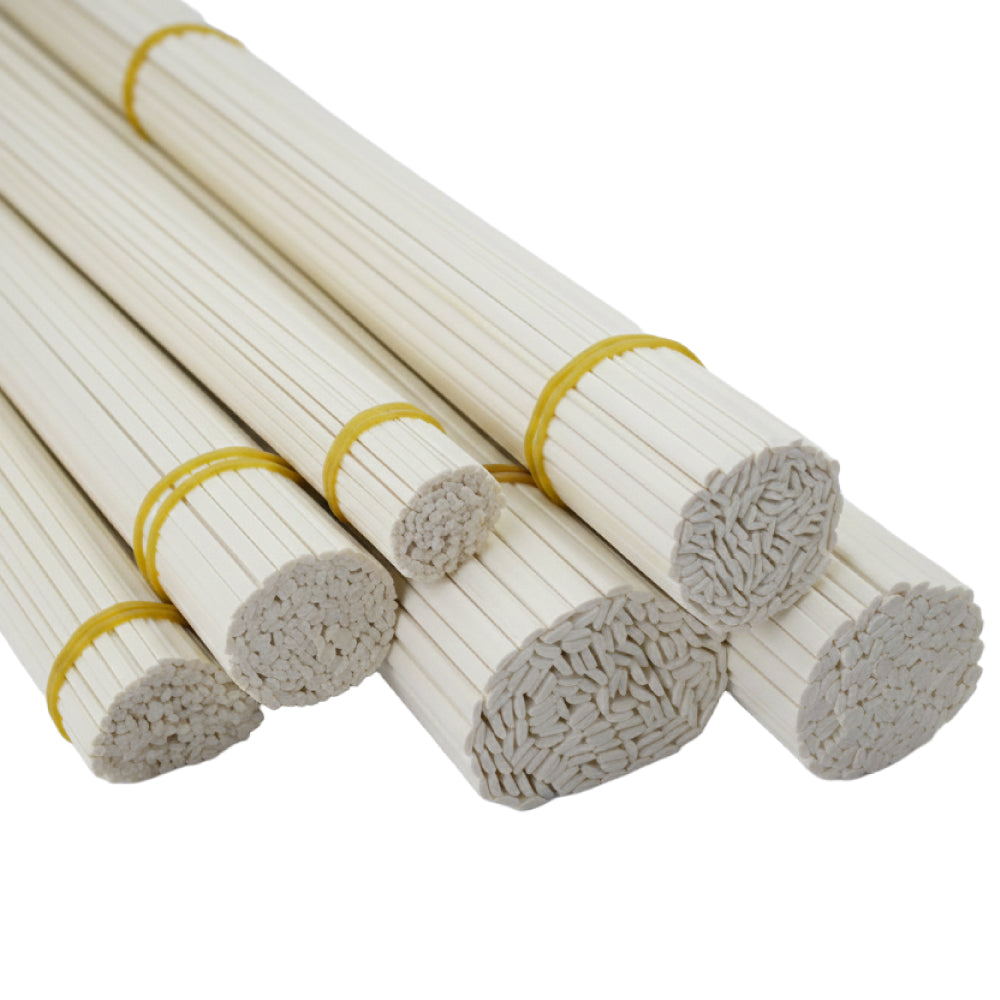

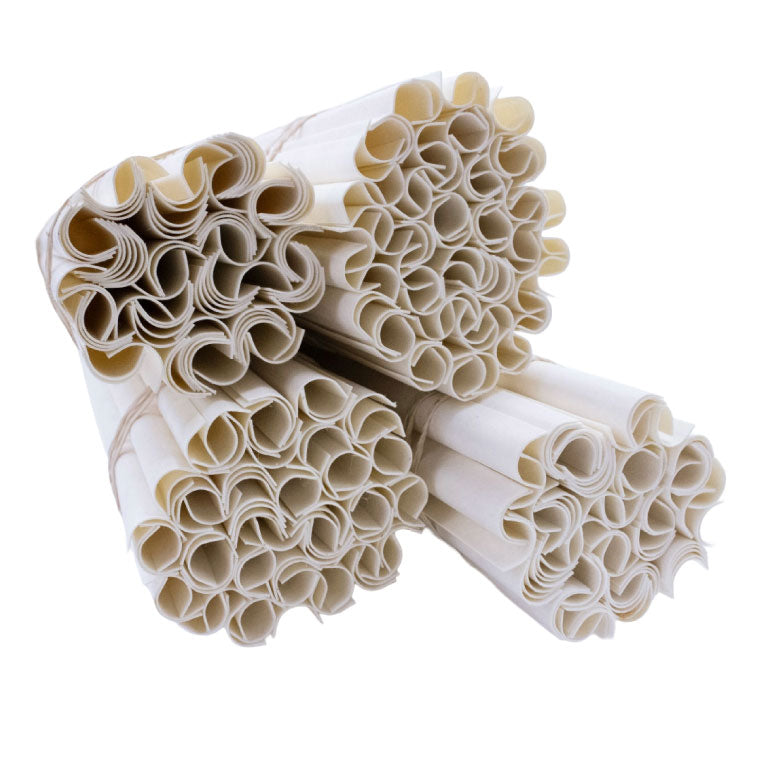

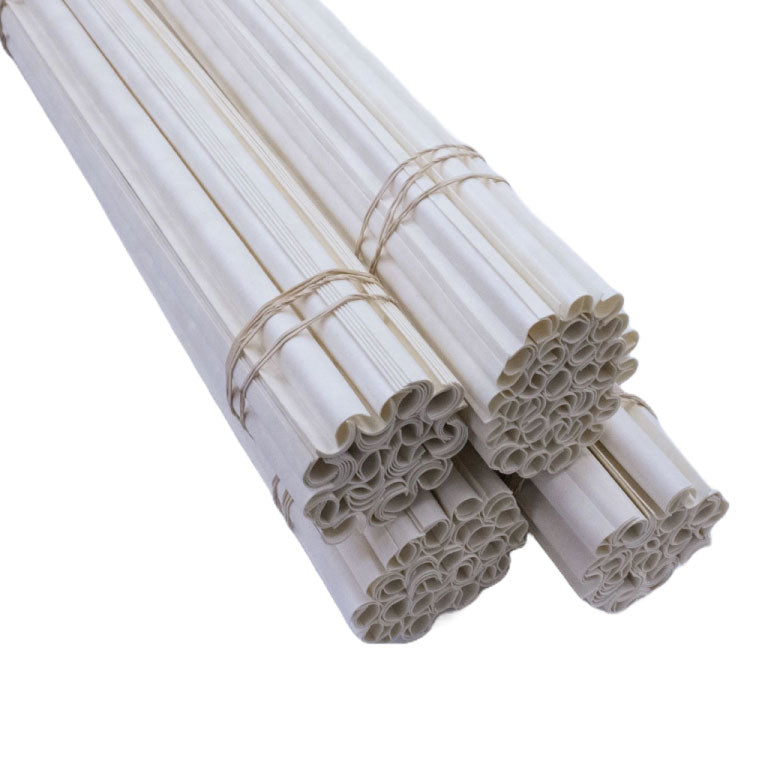

Nomex Shaped Wedges for Motor Stator Insulation

Nomex shaped wedges are high-temperature electrical insulation components used in electric motor rewinding, stator slot insulation and coil retention applications. These curve formed wedge profiles are designed to help secure windings within the motor slot while providing reliable electrical insulation performance.

Manufactured from Nomex insulation material, these wedges offer excellent physical and electrical properties, with a Class 180°C temperature rating for demanding motor repair and rewind environments.

If you are matching an existing wedge profile, please provide the current wedge dimensions, wall thickness or a clear photo/sample where possible. This helps us identify the most suitable Nomex shaped wedge profile for your application.
