RIGID LAMINATE SHEETS

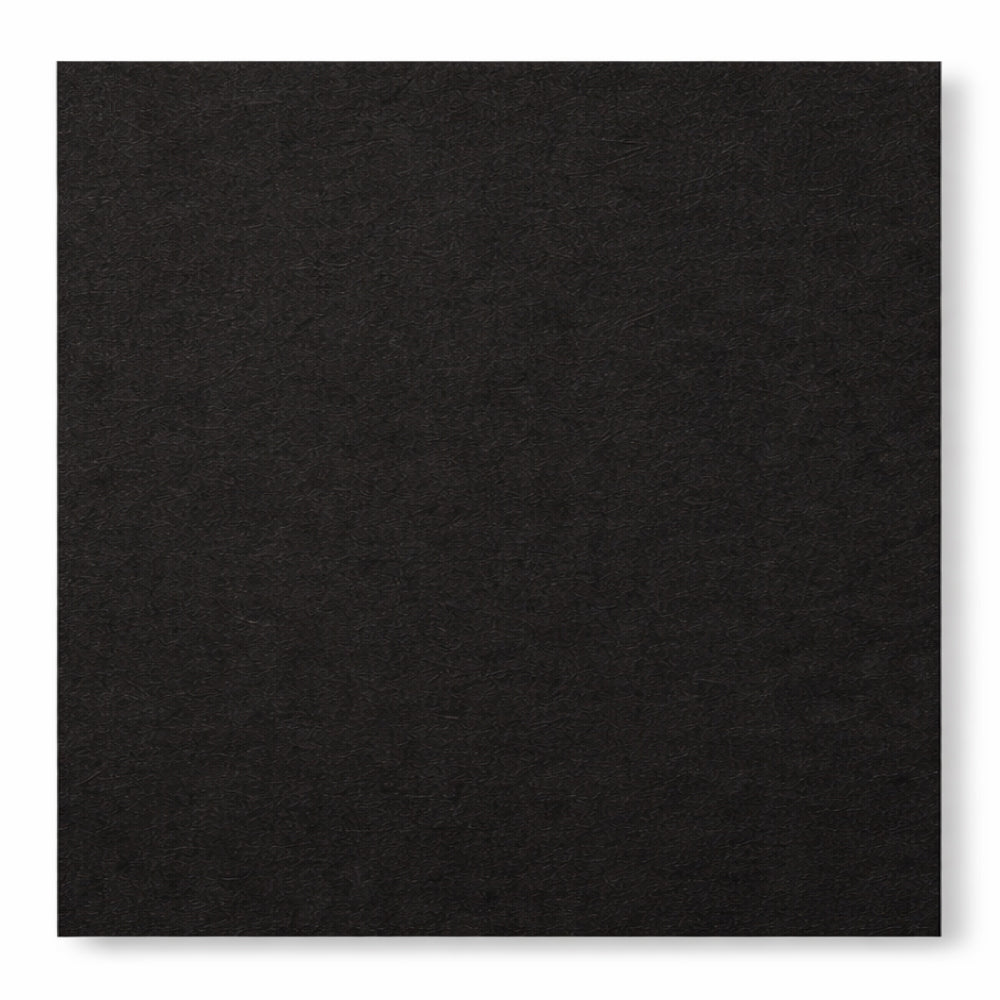

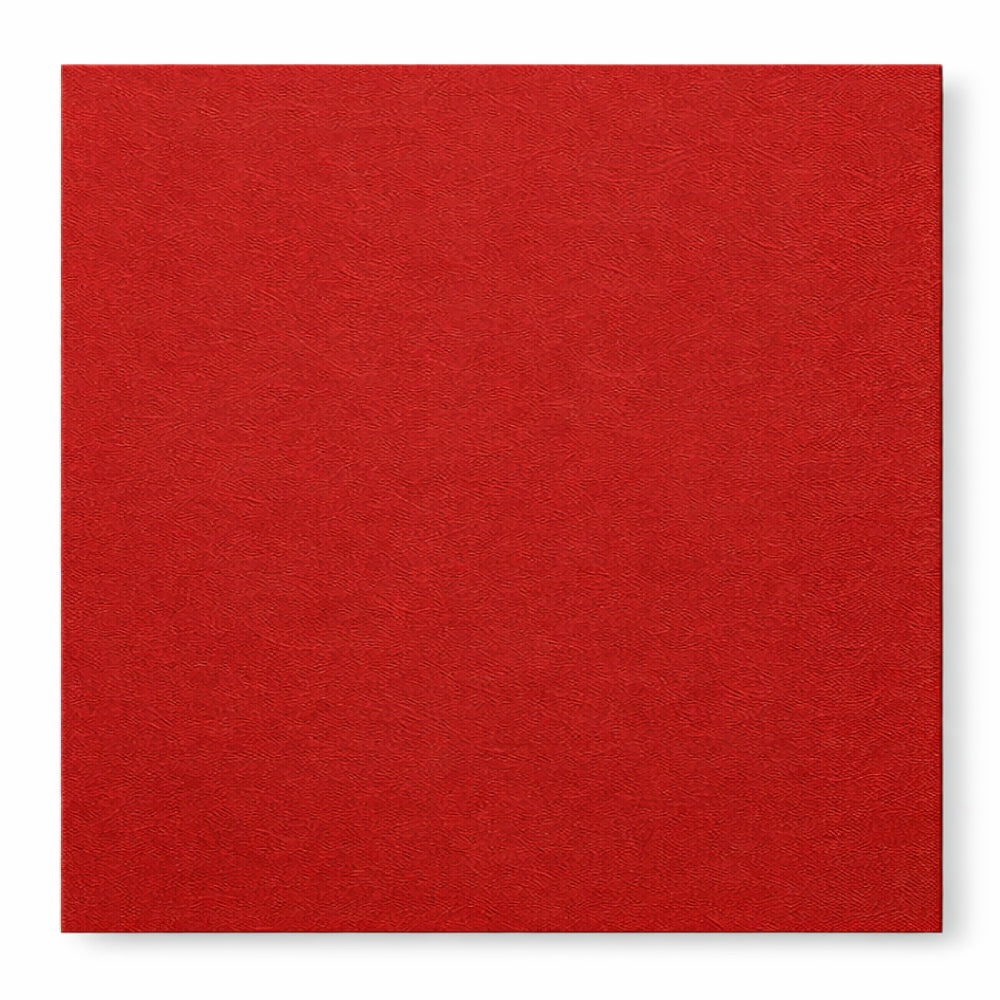

Red & Black Fibre Sheet
Vulcanised Fibre Laminate for Electrical Insulation & Light Mechanical Components

Red and black fibre sheet is a dense vulcanised cellulose-based laminate designed for low-voltage electrical insulation and light mechanical duties. It is commonly selected where machinability, dielectric performance, impact resistance and dimensional stability are required in barriers, switchgear components, washers and fabricated insulation parts.

We can supply both red and black fibre sheet, with supplier data available for each colour in standard tested thicknesses. This material is suitable for punched parts, cut panels and machined components where a tough, rigid insulating sheet is needed.

Key Features

• Material: Vulcanised fibre laminate
• Colour Options: Red or Black
• Temperature Rating: 105°C continuous use
• Sheet Size: 1200 mm x 1000 mm
• Available Thicknesses: 0.8 mm, 1 mm, 1.5 mm, 2 mm, 3 mm, 6 mm
  These are our standard supply thicknesses — contact us via our quote form if other thicknesses are required.
• Supplier test data available for: 0.8 mm, 1.6 mm and 2.4 mm in both red and black grades
• Supply Format: Available as full sheets, cut panels, or CNC machined parts to your drawings

Performance Highlights

• Good dielectric strength for low-voltage electrical insulation applications
• High mechanical toughness with good tensile strength and internal ply strength
• Impact and flexural resistance for fabricated and punched components
• Machinable and easy to fabricate into washers, barriers, gaskets and custom parts
• Available in red and black to suit identification or application requirements

Typical Applications

• Electrical insulation barriers and arc shields
• Terminal boards and low-voltage switchgear components
• Precision washers and industrial gaskets
• Punched insulation parts and fabricated mechanical components
• Cut panels and custom machined rigid insulation pieces

Based on supplier TDS data, both red and black fibre sheet grades provide a strong combination of electrical insulation, mechanical strength and controlled shrinkage at elevated temperature, making them suitable for general industrial insulation and fabricated component use.

This material is available as a rigid laminate sheet or cut panel and can also be custom machined — see our CNC machined parts.
