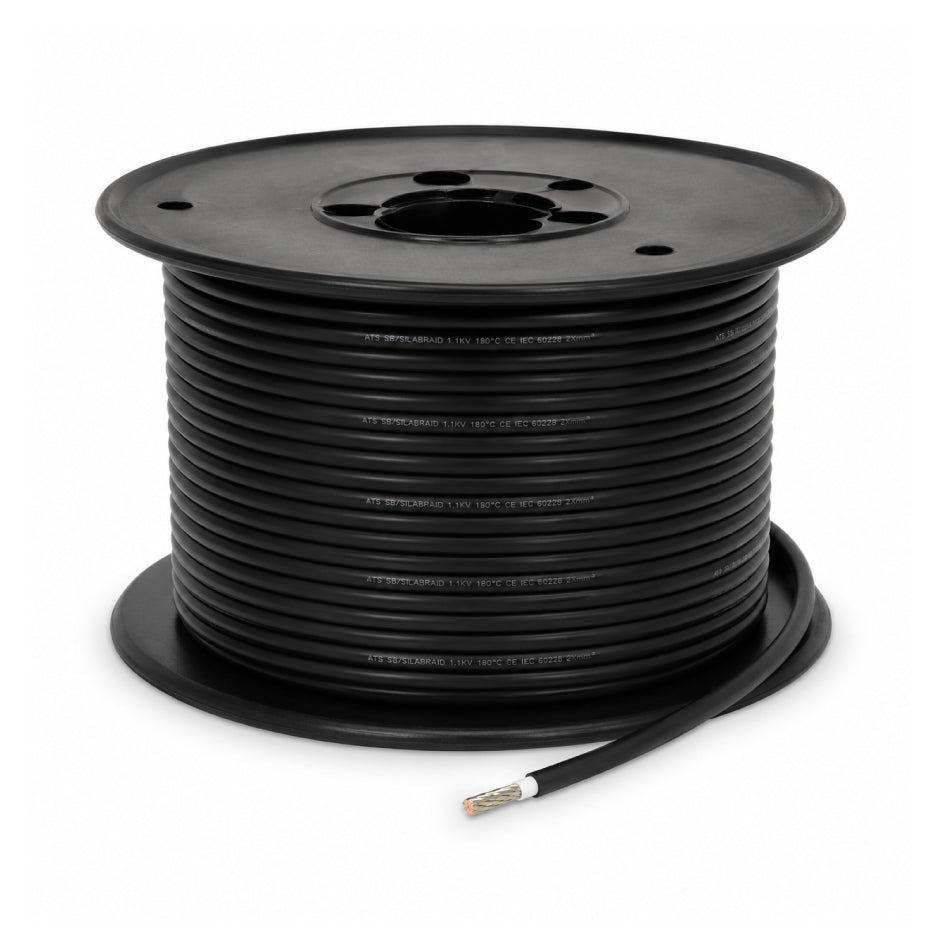

    SB/Silabraid black 1.1kV silicone rubber braided cable on a spool with tinned copper conductor for high-temperature industrial wiring up to 180°C

    High Temperature Electrical Cable

    SB/Silabraid Silicone Rubber Braided Cable – Class H 180°C, 1.1kV
    Flexible Tinned Copper Cable with Silicone Rubber Insulation & Silicone Resin-Varnished Fibre PET Braid

    SB/Silabraid Silicone Rubber Braided Cable is a premium Class H (180°C) flexible electrical cable designed for demanding industrial applications requiring excellent heat resistance, flexibility and long-term reliability. Manufactured with a Class 5 tinned copper conductor, silicone rubber insulation and a protective silicone resin-varnished fibre PET braid, it provides dependable performance in high-temperature environments where standard electrical cable is unsuitable.

    Rated for continuous operation from -60°C to +180°C with a 1.1kV AC voltage rating, SB/Silabraid is commonly used for motors, generators, transformers, renewable energy equipment, switchboards and electrical control systems. Its highly flexible construction also makes it ideal for starter coil to junction box connections on medium-voltage motors and generators.

    Common Applications
    • Medium-voltage motors and generators
    • Starter coil to junction box connections
    • Transformers
    • Wind energy systems
    • Solar inverters
    • Electrical cabinets and switchboards
    • High-temperature industrial wiring

    Construction

    Conductor Flexible Class 5 tinned copper (IEC 60228)
    Semi-Conductive Layer Semi-conductive tape (sizes above 6mm²)
    Insulation Silicone Rubber (Class H)
    Outer Braid Silicone resin-varnished fibre PET braid
    Colour Black

    Technical Specifications

    Insulation Class Class H (180°C)
    Nominal Voltage 1.1kV AC
    Operating Temperature -60°C to +180°C
    Supply Length Available cut to length from 5 metres up to 100 metre rolls (availability varies by size)
    Test Voltage 3.2kV AC for 1 minute
    Minimum Bending Radius 4 × cable outside diameter
    Flame Retardancy VW-1
    Standards UL 758, JB/T 6213, RoHS & REACH

    Available Sizes

    Cross Section Conductor Construction
    1.5mm² Available
    2.5mm² Available
    4mm² 56 × 0.31mm
    6mm² 84 × 0.31mm
    10mm² 84 × 0.31mm
    16mm² 126 × 0.41mm
    25mm² 196 × 0.41mm
    35mm² 276 × 0.41mm
    50mm² 396 × 0.41mm
    70mm² 360 × 0.51mm
    95mm² 475 × 0.51mm
    120mm² 608 × 0.51mm
    150mm² 756 × 0.51mm

    Supply Options: Available cut to your required length from 5 metres through to 100 metre rolls, subject to cable size and current availability.
