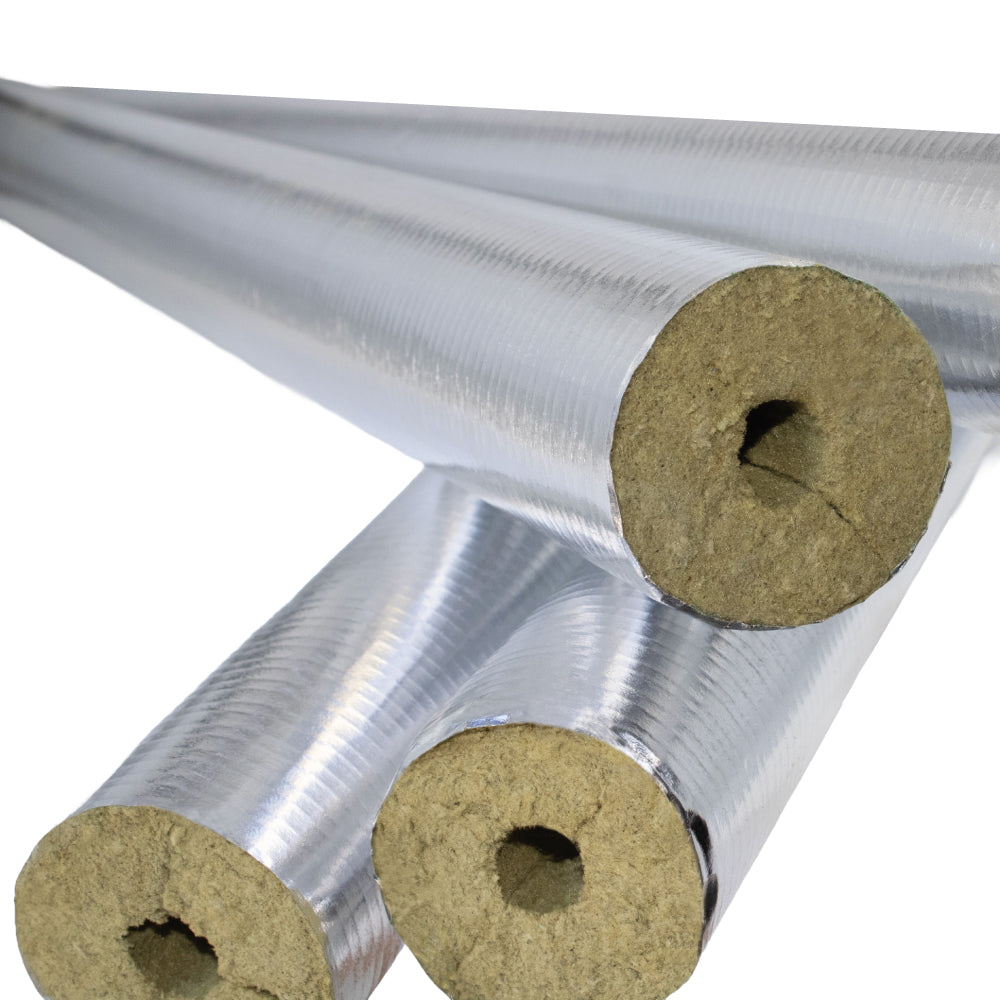

    foil faced steam pipe lagging insulation with mineral wool core for high temperature and acoustic protection
    BOILER & STEAM INSULATION

    Steam Pipe Lagging & Insulation – High-Temperature Protection
    Durable Thermal Solutions for Industrial Steam Systems

    Our Steam Pipe Lagging is engineered to deliver long-lasting thermal and acoustic insulation in high-temperature environments. Designed for use on steam lines, turbines, boilers, and industrial HVAC systems, this lagging withstands continuous exposure up to 650°C while offering moisture protection and acoustic dampening.

    Key Features:

    • Temperature Resistance: Operates reliably up to 650°C—ideal for insulating steam pipelines, high-pressure pipe systems, and surrounding boiler equipment.
    • Foil-Faced Acoustic Barrier: Reinforced aluminium foil facing reflects radiant heat and minimises sound transmission (foil rated to 80°C).
    • Moisture Resistant: Water-repellent surface resists moisture ingress in humid or exposed mechanical spaces.
    • Standard Sizes: Supplied in 1000 mm lengths. Available wall thicknesses range from 25 mm to 100 mm. Compatible with BS and ASTM pipe diameters.
    • Certified Performance: Nominal density 115 kg/m³. Complies with ASTM C612-93 and ASTM C547-03 Type 1 standards.

    Typical Applications:

    • Steam pipelines and high-pressure process lines
    • Boilers, turbines, and steam traps
    • Industrial HVAC and mechanical rooms
    • Acoustic insulation for high-temperature systems

    For superior thermal control and noise reduction in steam-heavy environments, choose our Steam Pipe Lagging—trusted by facilities engineers and boiler service professionals.

    ▼ See Pipe Size Reference Chart & Pipe Finishing Options Below
    For the fastest quote turnaround
    Please use the quote form below and include as much information as possible. This helps us provide a more accurate quote with fewer follow-up questions.
    FAST SHIPPING
    Australia-wide
    QUALITY
    Products
    EXPERT
    Advice
    AUSTRALIAN
    Owned

    Pipe Size Reference – Steel / Steam Pipe & Copper Tube

    Select insulation by the actual pipe or tube outside diameter. Nominal sizes are reference sizes and do not represent the measured outside diameter.
    Steel / Steam Pipe Copper Tube
    Nominal Bore (NB) Pipe size name Pipe Outside Diameter (mm) For insulation selection Tube Nominal Size Tube size name Tube Outside Diameter (mm) For insulation selection
    8 13.5 10 9.52
    10 17.2 15 12.70
    15 21.3 18 15.88
    20 26.9 20 19.05
    25 33.7 25 25.40
    32 42.4 32 31.75
    40 48.3 40 38.10
    – – 45 44.45
    50 60.3 50 50.80
    65 76.1 65 63.50
    80 88.9 80 76.20
    90 101.6 90 88.90
    100 114.3 100 101.60
    125 139.7 125 127.00
    150 165.1 150 152.40
    – – 175 177.80
    200 219.1 200 203.20
    – – 225 228.60

    Reference dimensions for Australian steel / steam pipe and copper tube. Always confirm the actual outside diameter of the pipe or tube before selecting preformed insulation.

    Outdoor Protective Finishes

    Weather Protection for External Pipe Lagging

    When pipe insulation is installed outdoors, it must be protected from UV, moisture and mechanical damage. Standard foil facings are generally suitable for indoor applications only. For external pipework we typically recommend:

    • Silvercladd 350 Jacketing — a tough, foil-based outdoor wrap with high puncture and tear resistance, providing a cost-effective weatherproof finish over the lagging.
    • Metal cladding — for maximum durability and mechanical protection. Available in galvanised, Colorbond, aluminium or stainless steel and quoted on request.

    Download Silvercladd 350 Jacketing Data Sheet (PDF)

    If you require pricing for Silvercladd 350 or metal cladding, please choose the option that the pipes are outdoors when submitting your quote request.
