Pressure Gauge

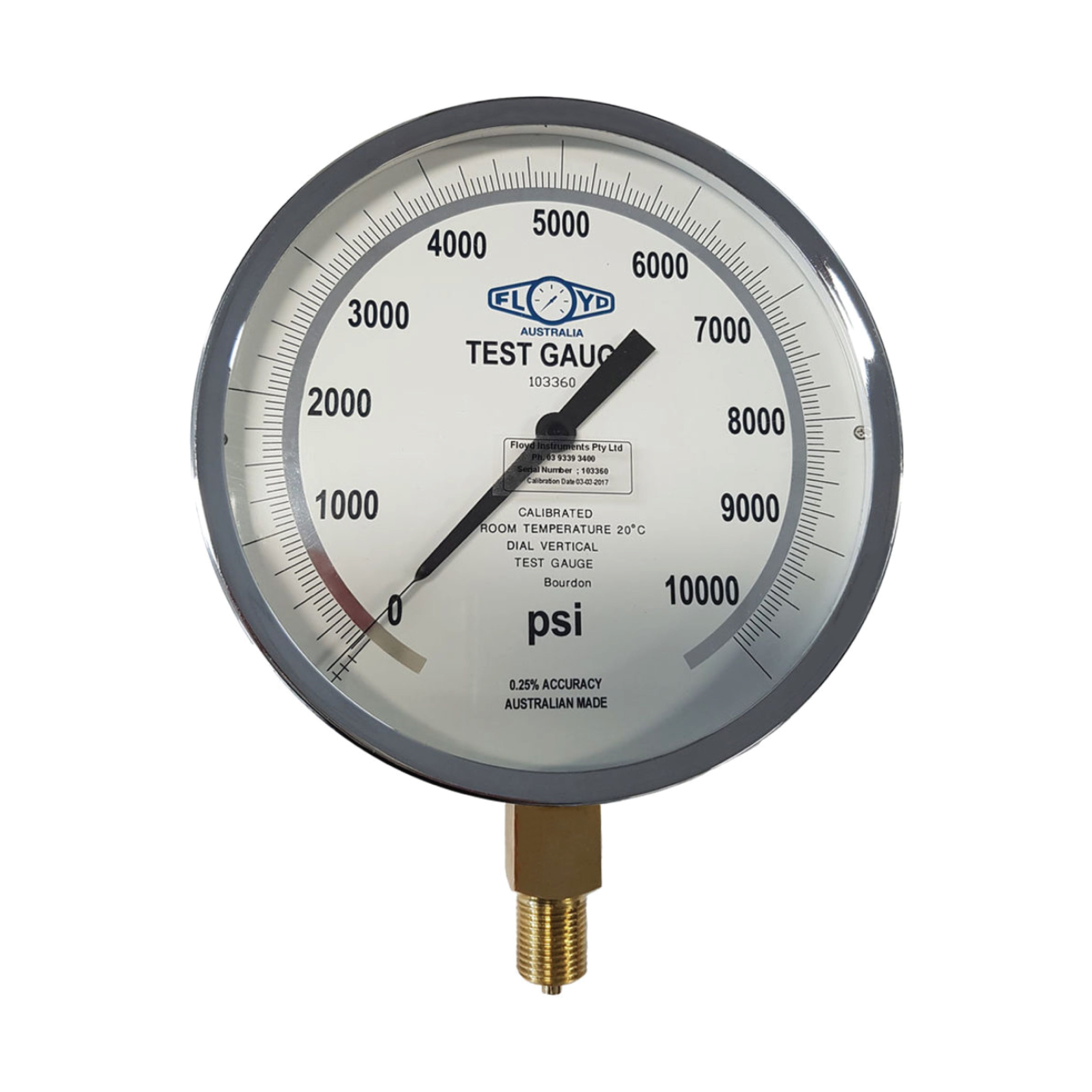

Test Pressure Gauges
Precision Instruments for Calibration & QA

Ensure your pressure systems are accurate, compliant, and reliable with our premium test gauges—designed for industrial quality control, laboratory calibration, and equipment testing.

Key Features:

• High Accuracy: ±0.25% full-scale accuracy for dependable calibration
• Sizes: Available in 150 mm, 200 mm, and 250 mm dials
• Materials: Stainless steel case, bezel, and movement (AISI 304), copper-beryllium element
• Mounting Styles:
  • Direct mount (bottom entry)
  • Surface mount (back flange)
  • Panel mount (rear with U clamp)
  • Flush mount (rear with 3-hole front flange)
• Display: Mirror dial with anti-parallax pointer for precise readings
• Window: Laminated safety glass
• Protection: IP65 rating for dust and water resistance
• Thread Types: ½" BSPP or BSPT
• Temperature Range: Ambient -20°C to +60°C, process up to 100°C

Pressure Ranges:

• Vacuum to 100,000 kPa
• Custom scales available: kPa, bar, PSI, mmHg, inHg, refrigerant, ammonia, etc.

Testing & Certification Options:

• Test Report: For routine testing (non-critical) – traceable to NATA standards
• NATA Certification: For use as a reference standard – includes uncertainty measurement

Applications:

• Calibration labs
• Factory QA testing
• Industrial equipment diagnostics
• Secondary standard for field use

Why Choose Floyd's Test Gauges?

• Built to Australian Standards
• Custom dial designs, logos & special scale options available
• Trusted accuracy and repeatability for critical measurements
