ELECTRICAL INSULATION SLEEVING & CORDS

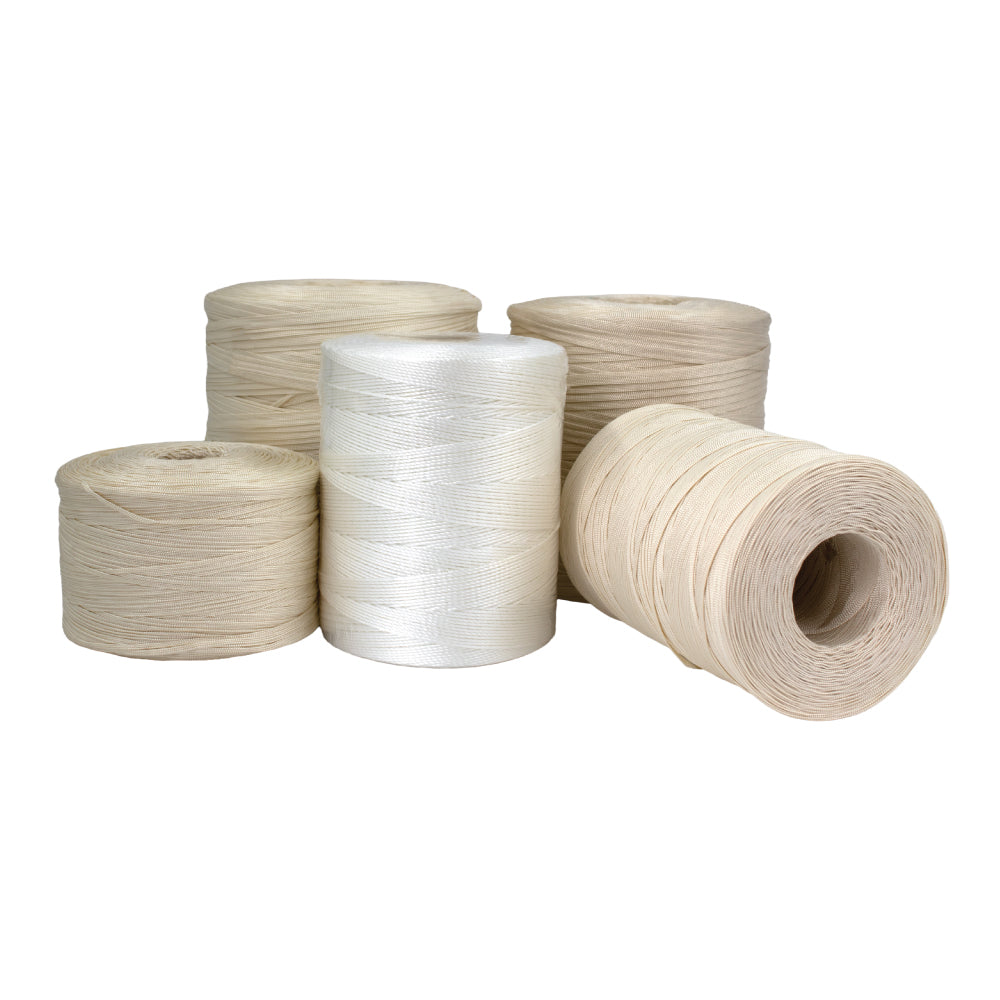

Tying Cords (Tuff Tape)
Class H High-Temperature Binding Tape for Motor Rewinding

Our Tying Cords, also commonly referred to as Tuff Tape, are manufactured from multi-stranded twisted viscose rayon and bonded with a high-temperature flexible resin. Designed for securing coils, insulation and windings during motor rewinding, they combine excellent tensile strength with the flexibility needed to tie securely without slipping.

Unlike wax-coated tying materials, Tuff Tape grips and binds into itself for a tight, reliable hold. It also splits easily into narrower widths where required, making it a versatile choice for a wide range of electrical insulation applications.

Available Sizes

• 4 Strand (3.4 mm wide)
• 8 Strand (6.8 mm wide)
• 10 Strand (8.4 mm wide)
• Supplied in economical 500 metre rolls

Features & Benefits

• Class H Temperature Rating: Suitable for electrical insulation systems up to 180°C.
• High Tensile Strength: Securely ties coils, windings and insulation components.
• Self-Gripping: Binds tightly into itself without slipping.
• Easy to Split: Can be separated into narrower strands when required.
• Flexible & Easy to Use: Ties quickly while maintaining excellent strength.

Typical Applications

• Electric motor rewinding
• Transformer coil tying
• Securing slot insulation and phase insulation
• Binding lead wires and coil end windings
• General electrical insulation assembly
