Copper Wire Spools – Enamelled Magnet Wire 0.5kg to 5kg

Q: Do you ship Australia-wide?

Yes. Free Australia-wide shipping with fast dispatch from Adelaide.

Enamelled Copper Wire Spools

Flat $13 shipping Australia-wide Applies to standard copper wire spools & shanks. Bulk quantities may incur additional freight.

Explore Full Copper Wire Range View Enamelled Copper Wire Shanks

Need sizing details? View the specification table

Enamelled copper winding wire on 0.5kg spool – high-conductivity insulated wire for motors, transformers, solenoids, and coils

0.5kg Spool - Enamelled Copper Wire (Magnet Wire) 0.2mm - 1.9mm Diameter

$49.00 AUD

Enamelled copper winding wire on 1kg spool – insulated high-conductivity wire for motors, transformers, solenoids, and electrical coils

1kg Spool - Enamelled Copper Wire (Magnet Wire) 0.2mm - 1.9mm Diameter

$79.00 AUD

Enamelled copper winding wire on 2kg spool – high-purity insulated wire for transformers, motors, solenoids, and electrical coils

2kg Spool - Enamelled Copper Wire (Magnet Wire) 0.2mm - 1.9mm Diameter

$149.00 AUD

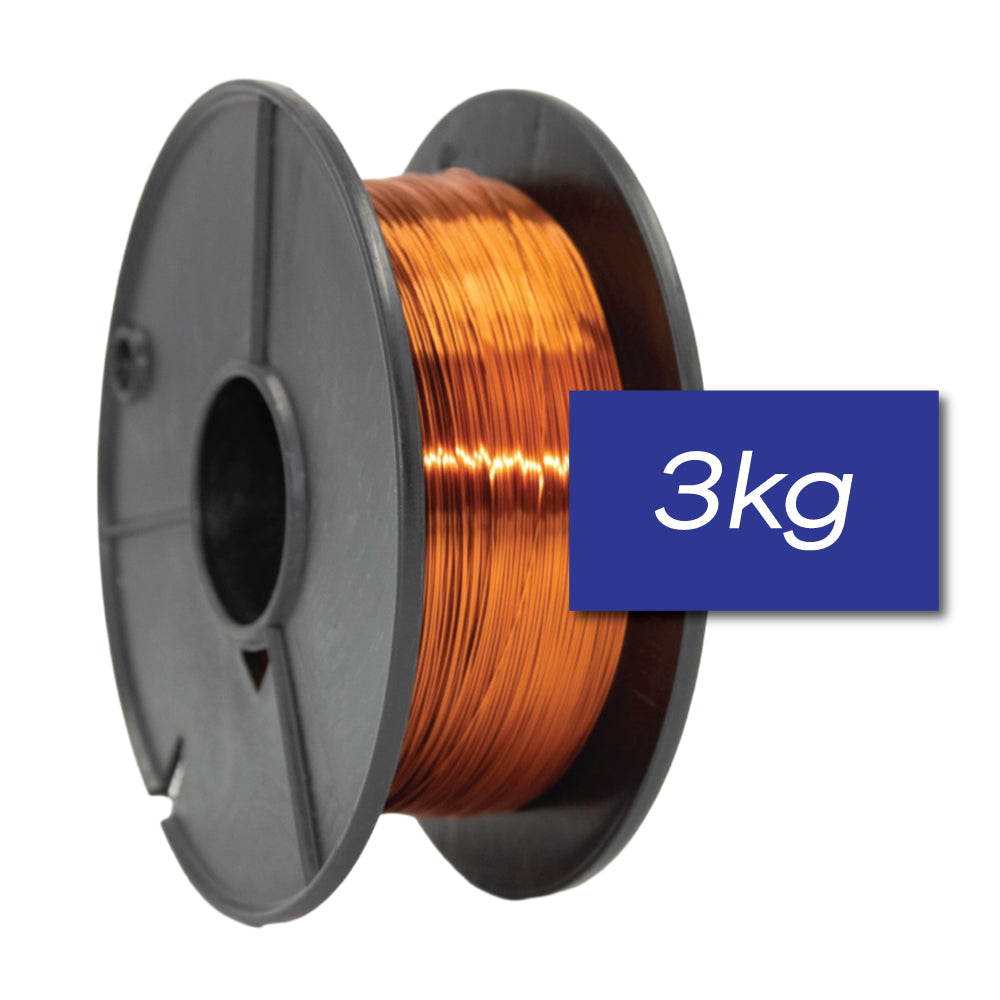

Enamelled copper winding wire on 3kg spool – high-purity insulated wire for transformers, motors, solenoids, and electrical coils

3kg Spool - Enamelled Copper Wire (Magnet Wire) 0.2mm - 1.9mm Diameter

$209.00 AUD

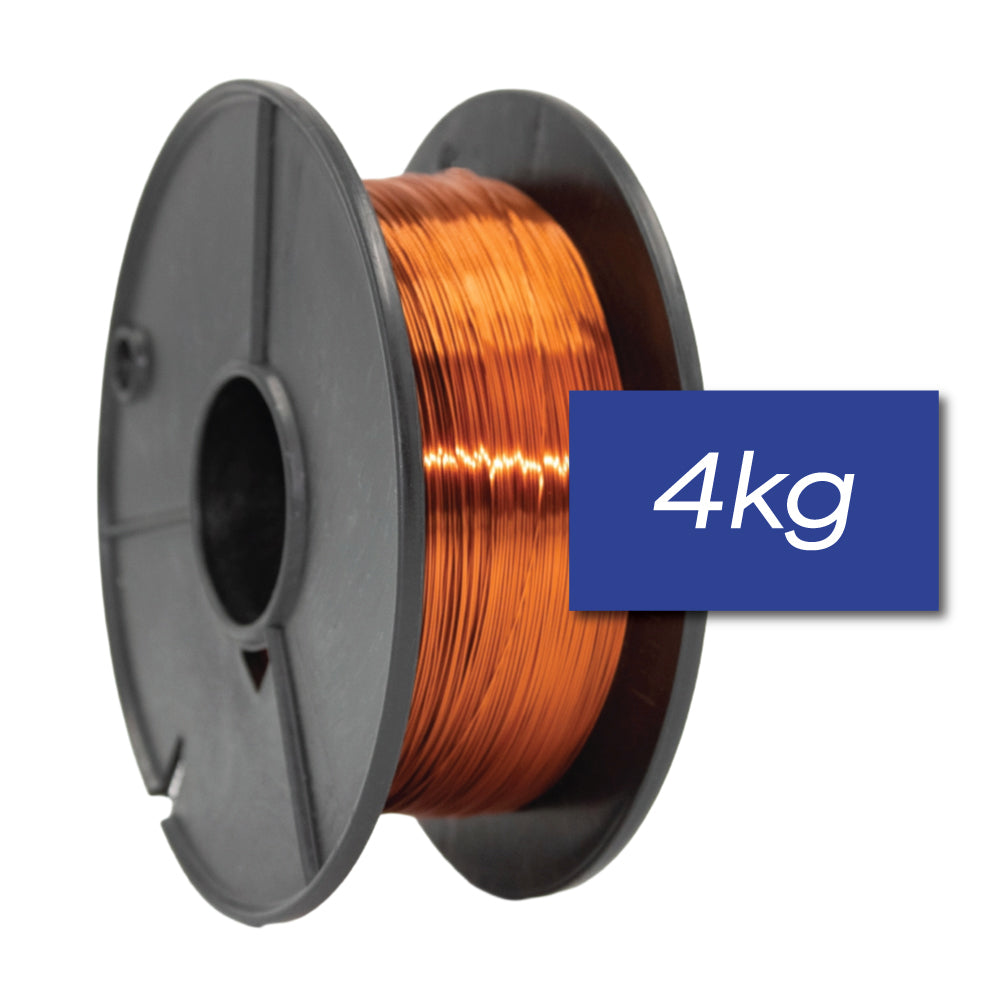

4kg Spool - Enamelled Copper Wire (Magnet Wire) 0.2mm - 1.9mm Diameter

$259.00 AUD

5kg Spool - Enamelled Copper Wire (Magnet Wire) 0.2mm - 2.0mm Diameter

$299.00 AUD

Customer feedback – Enamelled Copper Wire

Franco ★★★★★

Easy to find the right magnet wire, good pricing and fast local delivery. Wire arrived exactly as ordered and looks high quality.

Felix Deak · FELIRA ★★★★★

Fast delivery, perfect packaging and high-quality winding wire. Will do business with Advanced Thermal Supplies again.

Jimmy ★★★★★

Excellent service and product selection.

Enamelled Copper Wire - Larger Spool Sizes & Wholesale Prices Available

Contact for Larger Spool Sizes & Wholesale Prices

Copper Winding Wire Specifications – Poly Amide Imide (C220) Class C 220 °C (Spool Sizes ≤ 2.00 mm)

Gauge System		Nominal Diameter		Approx Metres/ Kg
MM	S.W.G.*	MM	Inches	Approx Metres/ Kg
0.2	36	0.2	0.0079	3580
0.224	35	0.224	0.0088	2854
0.25	33	0.25	0.0098	2291
0.236	34	0.236	0.0093	2571
0.265	33	0.265	0.0104	1.06
0.280	32	0.280	0.0110	1827
0.30	31	0.30	0.0118	1591
0.315	30	0.315	0.0124	1443
0.335	30	0.335	0.0132	1276
0.355	29	0.355	0.0140	1136
0.375	28	0.375	0.0148	1016
0.425	27	0.425	0.0167	793
0.45	26	0.45	0.0177	707
0.475	26	0.475	0.0187	635
0.50	25	0.50	0.0197	573
0.53	24	0.53	0.0209	510
0.56	24	0.56	0.0220	459
0.60	23	0.60	0.0236	459
0.63	23	0.63	0.0248	361
0.67	22	0.67	0.0264	319
0.71	22	0.71	0.0280	283
0.75	22	0.75	0.0295	255
0.80	21	0.80	0.0315	224
0.85	21	0.85	0.0335	198
0.90	20	0.90	0.0354	177
0.95	20	0.95	0.0374	159
1.00	19	1.00	0.0394	143
1.06	19	1.06	0.0417	127
1.12	19	1.12	0.0441	114
1.18	18	1.18	0.0465	103
1.25	18	1.25	0.0492	91.70
1.32	17-18	1.32	0.0520	82.20
1.40	17	1.40	0.0551	73
1.50	17	1.50	0.0591	63.70
1.60	16	1.60	0.0630	56
1.70	16	1.70	0.0669	49.60
1.80	15	1.80	0.0709	44.20
1.90	15	1.90	0.0748	39.70
2.00	14	2.00	0.0787	35.80

* S.W.G. = Standard Wire Gauge. S.W.G. shown by nearest bare diameter match. Values are nominal.

Helpful information Enamelled Copper / Magnet Wire FAQs

What is enamelled copper wire used for?

Also called magnet wire, it’s used for motor rewinding, transformers, inductors, alternators, electromagnets, solenoids and other electrical coils.

What spool sizes do you supply?

Bulk trade reels from 0.5 kg to 5 kg. Larger reels reduce joins and are ideal for professional rewinds and coil production.

Do you ship Australia-wide?

Yes, $13 flat rate Australia-wide shipping with fast dispatch from Adelaide.

Is this the same as magnet wire?

Yes. “Magnet wire” and “enamelled copper wire” are the same product: copper wire with a thin enamel insulation.

What is magnet wire used for?

For winding electric motors, transformers, inductors, solenoids and custom electromagnetic coils.

What is the difference between copper wire and magnet wire?

Standard copper wire is bare or PVC-insulated. Magnet wire has an enamel coating so it can be wound tightly without shorting.

Is magnet wire enameled?

Yes. The enamel is a thin electrical insulation that also provides heat and abrasion resistance (e.g., Class 200 / Class 220).

Is copper wire magnetic or non-magnetic?

Pure copper is non-magnetic. The “magnet” term refers to its use in electromagnetic windings, not to the copper itself.

What is enamelled copper wire?

Copper conductor coated with a thin enamel insulation, used for electrical windings and coils.

Which wire is best for winding?

Use enamelled copper magnet wire sized for your design/current and with the correct thermal class (e.g., Class 200/220 for motors).

What is copper winding wire?

Another name for enamelled copper magnet wire used to create motor, transformer and inductor windings.

How many metres are in a kilo of wire?

It depends on diameter. See our size chart for metres per kilogram by size, or contact us for a quick calculation.

Copper Wire Spools for Motors, Transformers & Industrial Coils

ATS supplies premium enamelled copper wire spools (magnet wire) in multiple sizes including 0.5 kg, 1 kg, 2 kg, 3 kg, 4 kg, and 5 kg. Manufactured from high-purity copper with durable enamel insulation rated to 200 °C, our winding wire ensures excellent conductivity and long-term performance. Ideal for motor rewinding, transformer and coil production, repair workshops, and OEM manufacturing. Also available in loose shank format for flexible handling and custom lengths.
