    💡 Need sizing details for our winding wire? View the specification table ↓
    Enamelled copper winding wire on 3kg spool – high-purity insulated wire for transformers, motors, solenoids, and electrical coils

    5kg Spool - Enamelled Copper Wire (Magnet Wire)

    0.2mm - 2.0mm Diameter

    $285.00
    Including GST Shipping calculated at checkout.
    Copper Wire Diameter (bare)
    Pickup & Dispatch: ✅ Pickup & Dispatch: Most large spools (3–5 kg) are ready by the next business day.
    ENAMELLED COPPER WIRE SPOOL

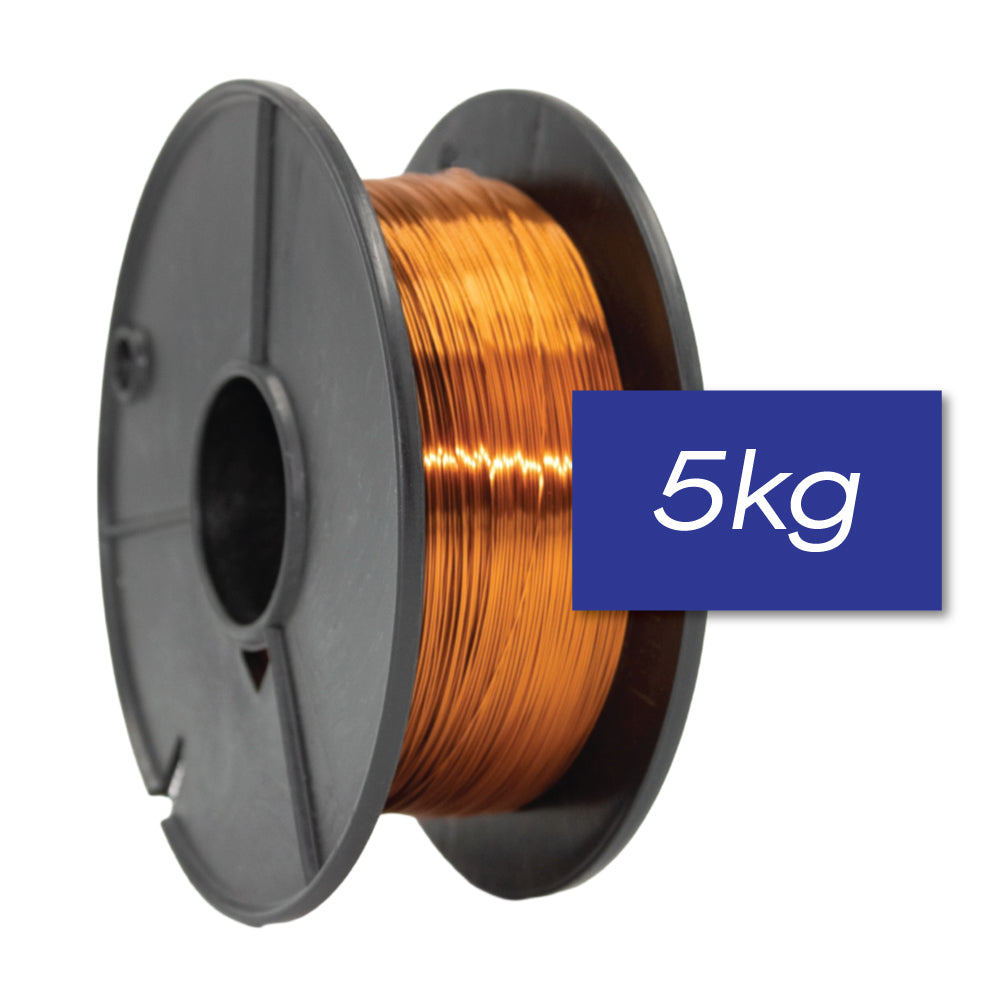

    5 kg Enamelled Copper Winding Wire Spool
    Bulk Spool for Production Use

    Premium Grade 2 enamelled copper winding wire (magnet wire) with a temperature class of 200 °C, supplied on a large 5 kg spool for high-volume or continuous production tasks. Also available in other spool sizes including 0.5 kg, 1 kg, 2 kg, 3 kg, and 4 kg. The listed diameters refer to the bare copper wire only — the enamel coating typically adds approximately 0.02 mm to the overall diameter. Manufactured from high-purity copper for excellent electrical conductivity, with durable heat-resistant enamel insulation engineered for long-term performance under demanding thermal and mechanical conditions.

    The bulk spool size reduces downtime from frequent spool changes, making it an efficient choice for motor rewinds, coil manufacturers, or plant maintenance teams. Customers seeking alternative conductor types may also be interested in our electrical insulation cables.

    Key Features:

    • Grade 2 enamel insulation rated to 200 °C
    • 5 kg spool — ideal for high-volume production
    • High-purity copper for superior electrical performance
    • Durable, heat-resistant enamel coating
    • Reliable performance under thermal and mechanical stress
    • Cost-effective solution for bulk users

    Typical Applications:

    • Large-scale motor rewinding
    • Transformer and coil manufacturing
    • Long production runs in industrial environments
    • Power generation, mining, or plant operations

    Copper Winding Wire Specifications – Poly Amide Imide (C220) Class C 220 °C (Spool Sizes ≤ 2.00 mm)

    Gauge System Nominal Diameter Approx Metres/ Kg
    MM S.W.G.* MM Inches
    0.2 36 0.2 0.0079 3580
    0.224 35 0.224 0.0088 2854
    0.25 33 0.25 0.0098 2291
    0.236 34 0.236 0.0093 2571
    0.265 33 0.265 0.0104 1.06
    0.280 32 0.280 0.0110 1827
    0.30 31 0.30 0.0118 1591
    0.315 30 0.315 0.0124 1443
    0.335 30 0.335 0.0132 1276
    0.355 29 0.355 0.0140 1136
    0.375 28 0.375 0.0148 1016
    0.425 27 0.425 0.0167 793
    0.45 26 0.45 0.0177 707
    0.475 26 0.475 0.0187 635
    0.50 25 0.50 0.0197 573
    0.53 24 0.53 0.0209 510
    0.56 24 0.56 0.0220 459
    0.60 23 0.60 0.0236 459
    0.63 23 0.63 0.0248 361
    0.67 22 0.67 0.0264 319
    0.71 22 0.71 0.0280 283
    0.75 22 0.75 0.0295 255
    0.80 21 0.80 0.0315 224
    0.85 21 0.85 0.0335 198
    0.90 20 0.90 0.0354 177
    0.95 20 0.95 0.0374 159
    1.00 19 1.00 0.0394 143
    1.06 19 1.06 0.0417 127
    1.12 19 1.12 0.0441 114
    1.18 18 1.18 0.0465 103
    1.25 18 1.25 0.0492 91.70
    1.32 17-18 1.32 0.0520 82.20
    1.40 17 1.40 0.0551 73
    1.50 17 1.50 0.0591 63.70
    1.60 16 1.60 0.0630 56
    1.70 16 1.70 0.0669 49.60
    1.80 15 1.80 0.0709 44.20
    1.90 15 1.90 0.0748 39.70
    2.00 14 2.00 0.0787 35.80

    * S.W.G. = Standard Wire Gauge. S.W.G. shown by nearest bare diameter match. Values are nominal.
