Rigid Laminate Sheets

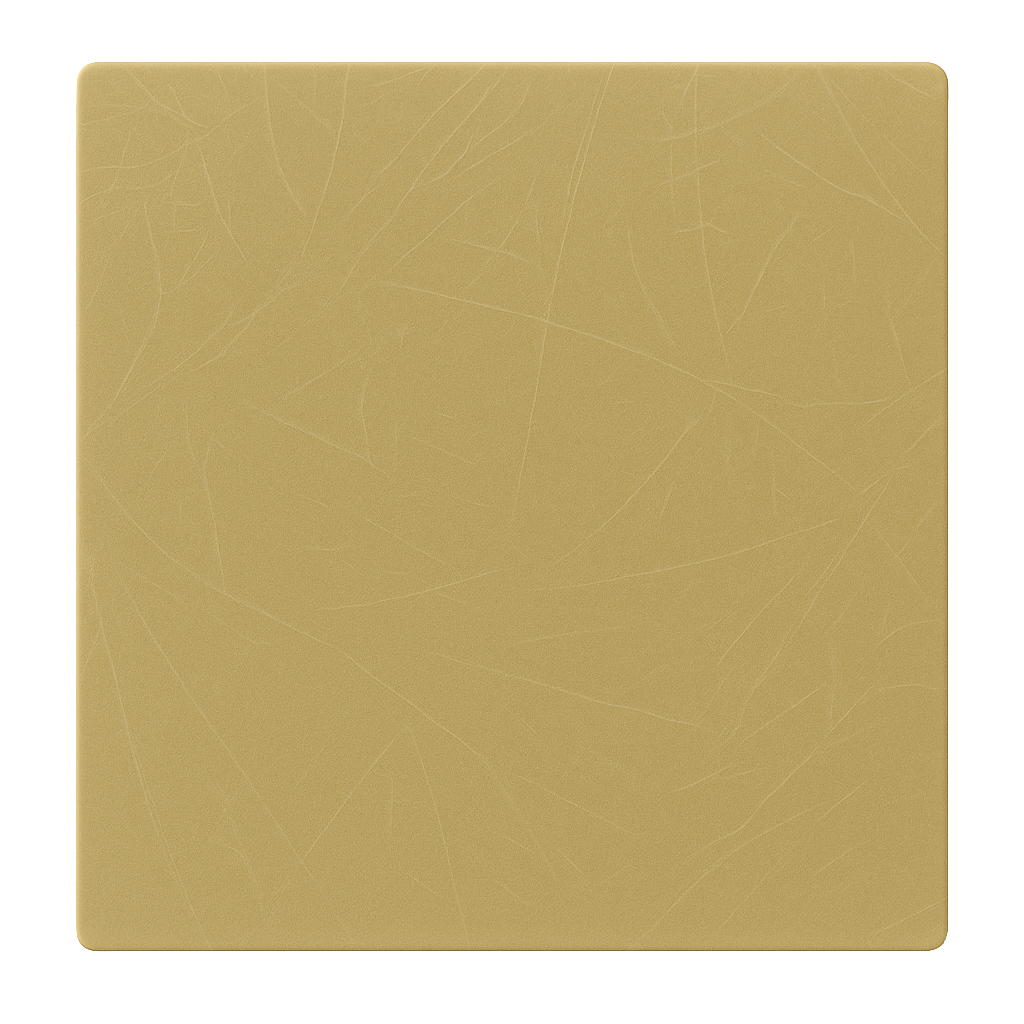

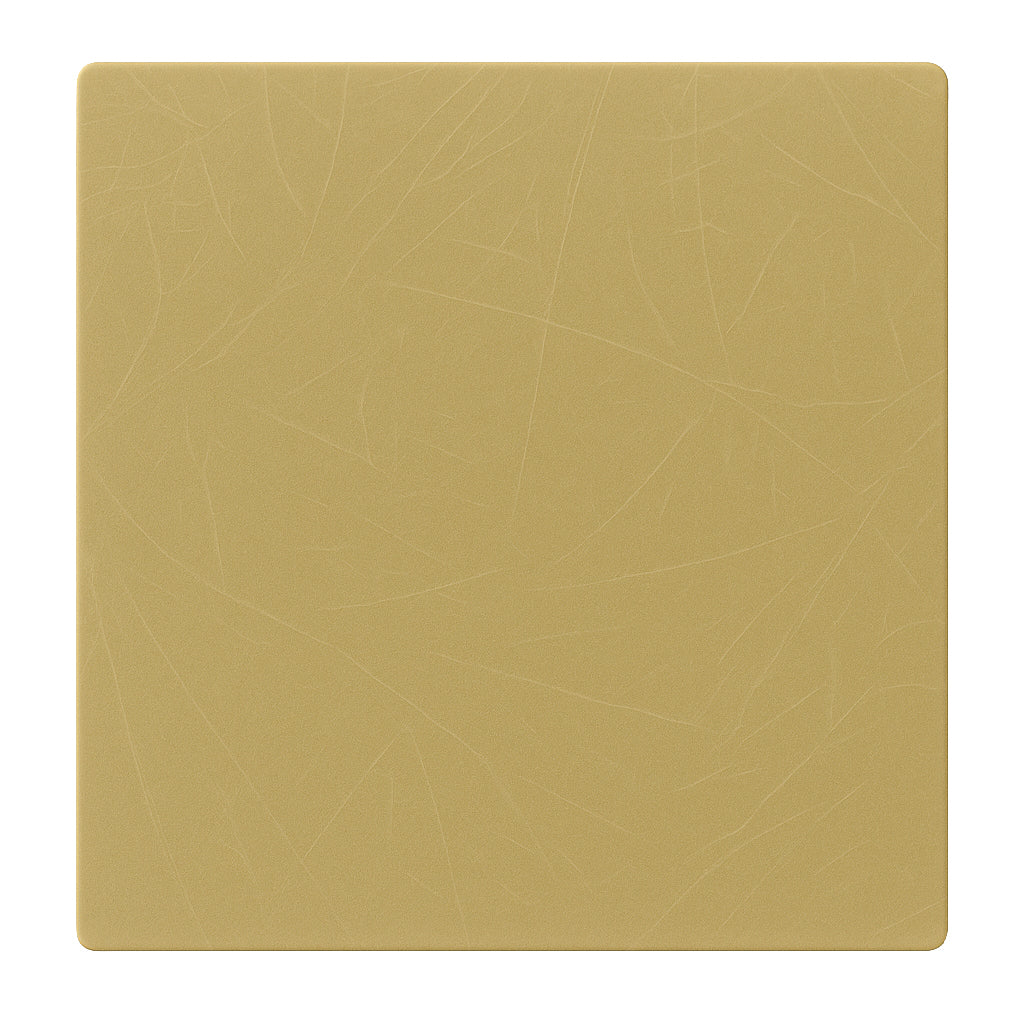

Fibreglass Epoxy Laminate Sheet
High-Temperature Electrical Insulation & Structural Performance (210°C Class)

This fibreglass epoxy laminate is a high-performance electrical insulation material engineered for demanding industrial applications. It is commonly supplied as Glastic SG-200 or an equivalent ESP Glass laminate, providing reliable mechanical strength, dielectric performance, and thermal stability.

Product Highlights:

• Available Thicknesses: 0.8 mm – 25 mm
  (Standard sizes available, with custom thicknesses on request via the quote form)
• Temperature Resistance: Continuous rating up to 210°C
• Sheet Dimensions: 1220 mm × 1220 mm or 2440 mm × 1220 mm
• Colour: Natural / Tan
• Supply Format: Available as full sheets, cut panels, or CNC machined parts to your drawings

Key Benefits:

• High mechanical strength for structural and load-bearing components
• Excellent electrical insulation and dielectric performance
• Stable performance at elevated temperatures
• Good resistance to electrical arcing and tracking
• Suitable for precision machining and fabricated components

Common Applications:

• Switchgear and electrical panels
• Busbar supports and insulating structures
• Motor and transformer components
• High-voltage insulation systems
• Precision CNC machined insulation parts

For alternative high-performance laminates, see G7 Silicone Glass.

This material is available as sheet stock and cut panels or can be fabricated into custom CNC machined components.

For thermal insulation applications at higher temperatures, see our High Temperature Boards including calcium silicate, ceramic fibre, and Glastherm HT.

Technical Data Sheet

Technical data shown is based on Glastic SG-200 or equivalent material. Supplied product may vary slightly depending on availability.
