    Plain cotton webbing electrical insulation tape for 105°C Class A motor rewinding, transformer assembly and coil binding

    Electrical Insulation Tape

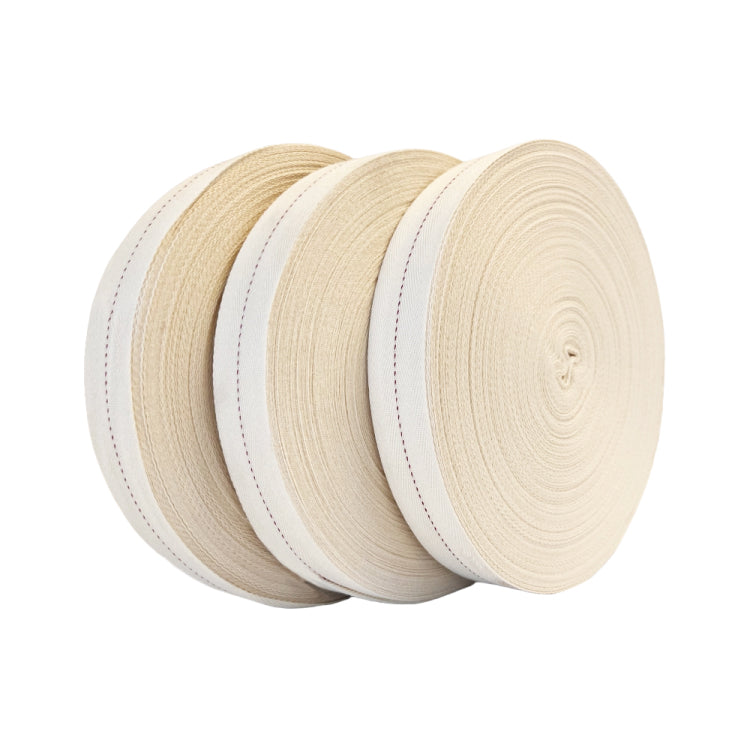

    Plain Cotton Webbing Tape – 105°C Class A Electrical Insulation Tape
     Heavy-Duty Woven Cotton Tape for Motor Rewinding, Coil Binding & Transformer Assembly

    ATS Plain Cotton Webbing Tape is a heavy-duty woven cotton electrical insulation tape manufactured from durable cotton fibres to provide excellent mechanical strength and flexibility. It is designed to secure and reinforce electrical windings while remaining easy to wrap around coils, transformers and other electrical components.

    Rated for continuous service up to 105°C (Class A), Plain Cotton Webbing Tape is widely used for motor rewinding, transformer manufacture, coil binding, winding reinforcement and the repair or manufacture of electrical equipment. The woven cotton construction readily absorbs compatible electrical varnishes and resins during impregnation, making it ideal for motor rewinding applications.

    Supplied on 55 metre rolls in 13mm, 20mm, 25mm and 32mm widths.

    Common Applications
    • Electric motor rewinding
    • Transformer manufacturing
    • Coil binding and reinforcement
    • Electrical winding insulation
    • Generator and armature repairs
    • General electrical insulation

    Specifications

    Temperature Rating 105°C (Class A)
    Material Plain woven cotton webbing
    Construction Non-adhesive woven tape
    Roll Length 55 metres
    Available Widths 13mm, 20mm, 25mm & 32mm
    Applications Motor rewinding, transformer manufacture, coil binding, winding reinforcement, generator repairs and general electrical insulation.
    ↓
    Compare the full electrical insulation non-adhesive tape range below.
    High Temperature
    Industrial electrical insulation
    Strong & Durable
    Built for demanding applications
    Electrical Insulation
    Reliable insulation performance
    Quality Products
    Trusted industrial solutions
    Australian Owned
    Expert local support

    Compare Non-Adhesive Electrical Insulation Tapes

    Compare temperature ratings, materials, roll lengths and available widths across the ATS non-adhesive electrical insulation tape range.

    Plain woven glass electrical insulation tape for 155°C Class F motor rewinding and transformer insulation

    Plain Woven Glass Tape

    155°C Class F Electrical Insulation Tape

    High-temperature woven fibreglass tape for motor rewinding, transformer manufacture, coil insulation and slot insulation.

    Temperature: 155°C (Class F)
    Roll Length: 50 metres
    Widths: 12mm, 20mm, 25mm & 50mm
    View Product
    Plain woven terylene polyester electrical insulation tape for 130°C Class B motor rewinding and transformer applications

    Plain Woven Terylene Polyester Tape

    130°C Class B Electrical Insulation Tape

    Strong woven polyester tape offering flexibility and abrasion resistance for motor rewinding, transformers and general electrical insulation.

    Temperature: 130°C (Class B)
    Roll Length: 50 metres
    Widths: 12mm, 20mm & 25mm
    View Product
    Grey Egyptian cotton electrical insulation tape for 105°C Class A motor rewinding, coil binding and transformer assembly

    Grey Egyptian Cotton Tape

    105°C Class A Electrical Insulation Tape

    Soft, conformable woven cotton tape for traditional motor rewinding, coil binding, transformer assembly and winding reinforcement.

    Temperature: 105°C (Class A)
    Roll Length: 50 metres
    Widths: 12mm, 16mm, 20mm & 25mm
    View Product
    Plain cotton webbing electrical insulation tape for 105°C Class A motor rewinding, coil binding and transformer manufacture

    Plain Cotton Webbing Tape

    105°C Class A Electrical Insulation Tape

    Heavy-duty woven cotton webbing for coil binding, winding reinforcement, transformer manufacture and motor repair applications.

    Temperature: 105°C (Class A)
    Roll Length: 55 metres
    Widths: 13mm, 20mm, 25mm & 32mm
    View Product

    Browse the Complete Non-Adhesive Tape Range

    Frequently Asked Questions

    Find answers to common questions about our plain woven glass, terylene polyester and cotton electrical insulation tapes.

    Which non-adhesive electrical insulation tape should I choose? ▾
    Choose Plain Woven Glass Tape for the highest temperature rating in the range, Plain Woven Terylene Polyester Tape for a strong and economical polyester option, Grey Egyptian Cotton Tape for flexible traditional motor rewinding and coil binding, and Plain Cotton Webbing Tape for heavier-duty binding and reinforcement.
    What is the difference between glass, polyester and cotton insulation tapes? ▾
    Woven glass tape offers the highest temperature capability and excellent mechanical strength. Polyester tape provides good strength, abrasion resistance and flexibility at a lower temperature class. Cotton tapes are soft, conformable and well suited to traditional winding, binding and varnish impregnation applications.
    Are these tapes adhesive-backed? ▾
    No. All four products are non-adhesive woven insulation tapes. They are applied by wrapping, binding or securing around coils, windings and electrical components, and may then be used with a compatible varnish or resin system where required.
    Can these tapes be used for motor rewinding? ▾
    Yes. These tapes are commonly used in electric motor rewinding, coil binding, winding reinforcement, transformer manufacture and generator repair. The best product depends on the operating temperature, required strength and preferred material.
    Can the tapes be used with electrical varnishes and resins? ▾
    These woven tapes are commonly used in varnish and resin impregnation processes. Cotton tapes are particularly absorbent, while glass and polyester tapes provide strong mechanical reinforcement. Compatibility should always be checked against the specific varnish or resin system being used.
    What temperature ratings are available? ▾
    The range includes:
    • Plain Woven Glass Tape: 155°C, Class F
    • Plain Woven Terylene Polyester Tape: 130°C, Class B
    • Grey Egyptian Cotton Tape: 105°C, Class A
    • Plain Cotton Webbing Tape: 105°C, Class A
    What roll lengths and widths are available? ▾
    Plain Woven Glass Tape, Terylene Polyester Tape and Grey Egyptian Cotton Tape are supplied on 50 metre rolls. Plain Cotton Webbing Tape is supplied on 55 metre rolls. Available widths vary by product, so please refer to the product specifications for the exact sizes.
    Are custom widths available? ▾
    These products are supplied in the standard widths shown on each product page. Custom slit widths are not currently offered for this range.
    Can ATS help me choose the correct tape? ▾
    Yes. Let us know the equipment type, operating temperature, required width and whether the tape is being used for insulation, binding or reinforcement. Our team can help you compare the available options and identify the most suitable tape for your application.
