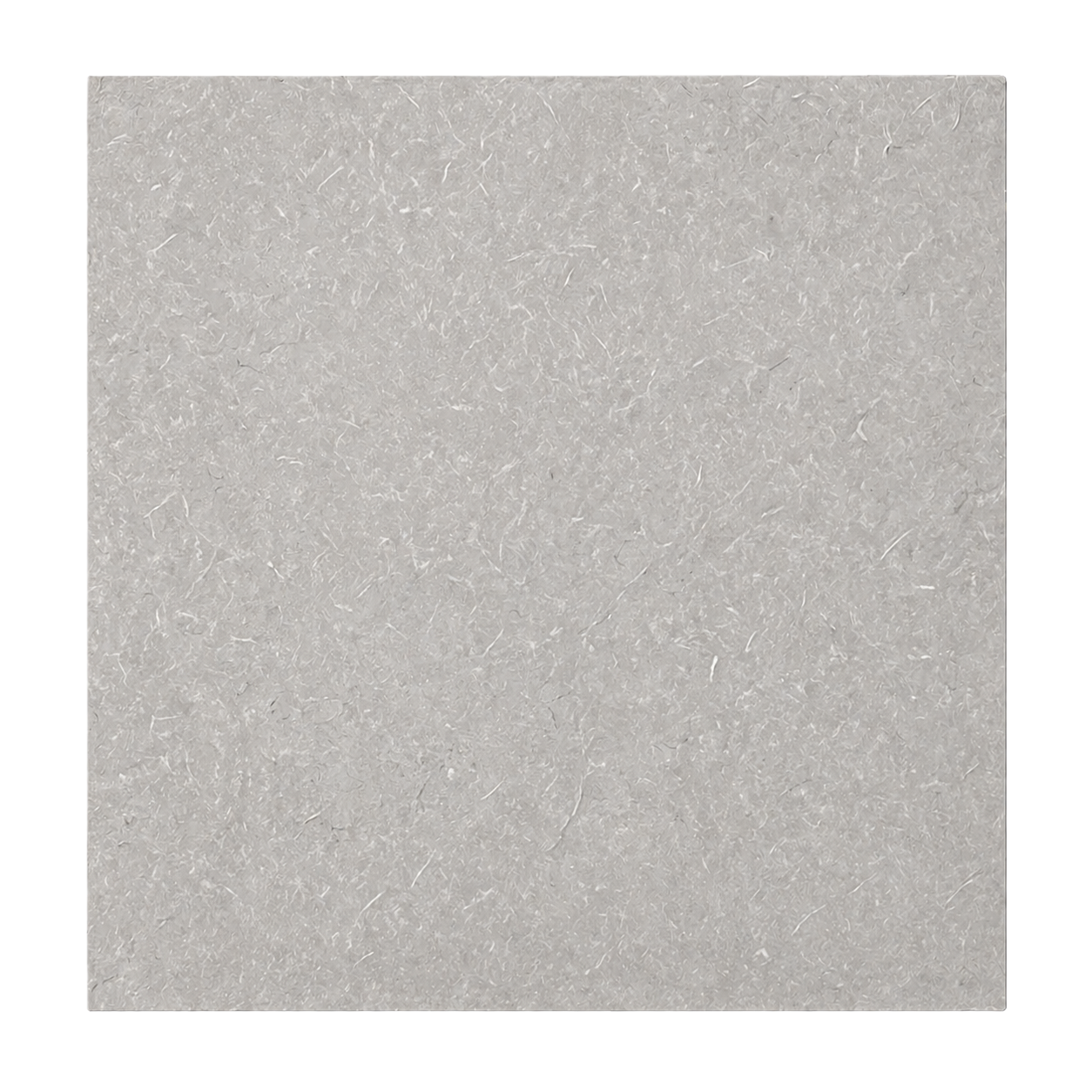

Nema G7 Silicone Glass Laminate
High-Temperature Electrical Insulation for Arc Resistance & Humid Conditions

• Temperature Rating: Continuous operation up to 220°C
• Sheet Size: 950 mm x 950 mm
• Thicknesses Available: Standard thicknesses between 3.2mm - 16mm. Other thicknesses are a special order and longer lead times apply
• Supply Format: Available as full sheets, cut panels, or CNC machined parts to your drawings

Nema G7 Silicone Glass Laminate is a silicone resin bonded glass cloth laminate developed for high-temperature electrical insulation applications. It offers strong dielectric performance, excellent heat and arc resistance, and reliable electrical properties under humid operating conditions.

With a continuous operating temperature of up to 220°C, Nema G7 is well suited to demanding electrical environments where thermal stability is critical. It is commonly used for switchgear insulation, transformer components, arc barriers, insulators, and heating or appliance insulation parts.

Key Benefits

• Continuous operation up to 220°C
• Excellent heat and arc resistance
• Good electrical properties under humid conditions
• Strong dielectric performance for high-temperature applications
• Suitable for fabricated sheet components and CNC machined parts

Looking for an alternative rigid insulation sheet for different thermal or mechanical requirements? Consider Cogetherm Mica for ultra-high temperature resistance, or G10 Epoxy Laminate for a rigid laminate with strong mechanical performance in lower temperature environments.

G7 Silicone Glass Laminate is available as sheet stock or as CNC machined parts to suit your application.
