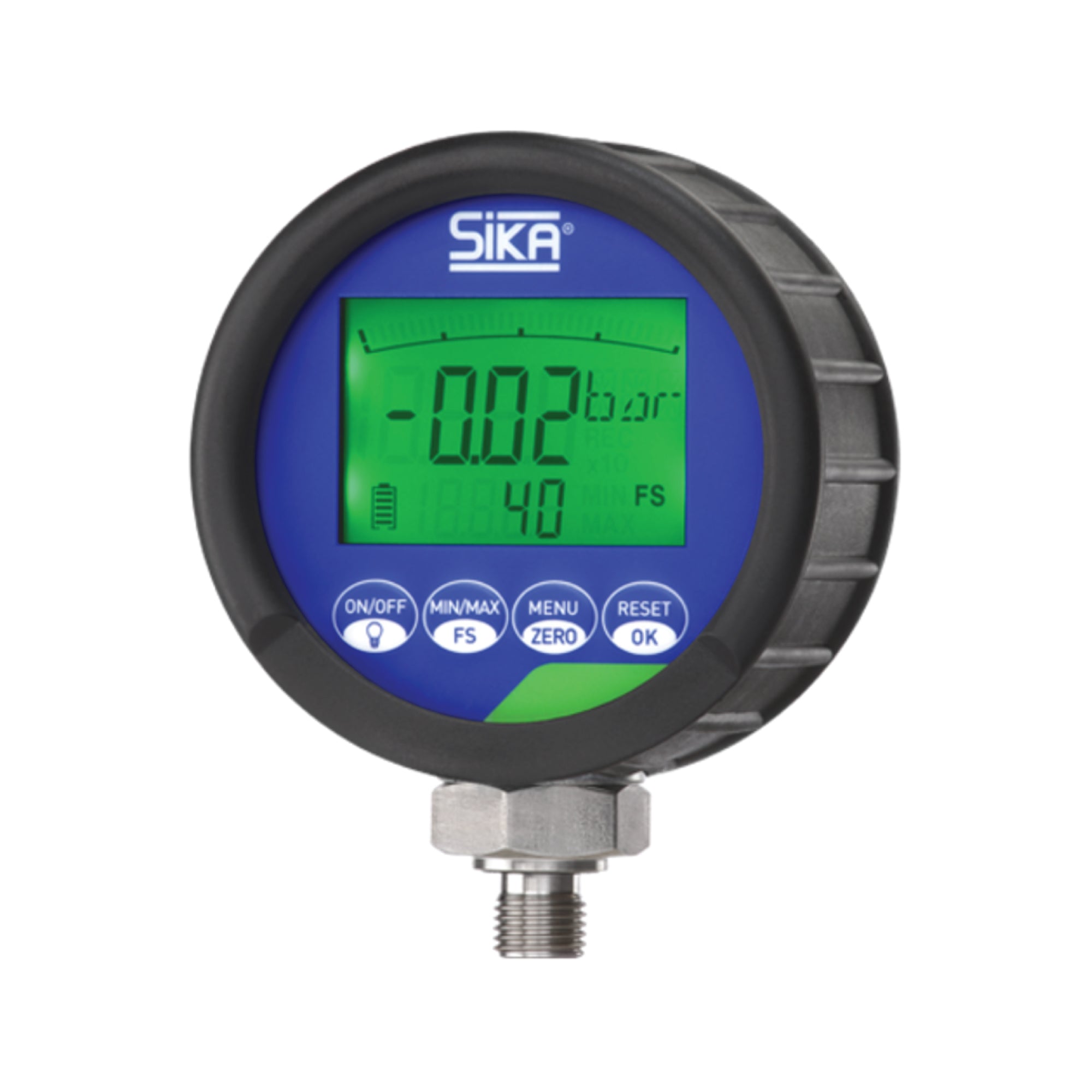

Digital Pressure Gauges – Type E2, D2 & C2
High-Accuracy Reference & Industrial Measurement

Overview

The SIKA Type E2, D2 & C2 Digital Pressure Gauges are high-precision instruments designed for both stationary and mobile pressure measurement. Commonly used as reference gauges, they allow for on-site checking, adjustment, and calibration of pressure measurement devices without the need for additional equipment.

Key Features:

• High Accuracy Options:
  • Type E2 – ±0.5% of full scale
  • Type D2 – ±0.1% of full scale
  • Type C2 – ±0.05% of full scale
• Wide Pressure Range: From vacuum up to 1000 bar
• Clear Digital Display: Backlit LCD with bar graph and MIN/MAX function
• Fast Response: 10 ms measuring rate for detecting pressure peaks
• Multiple Units: bar, mbar, kPa, MPa, PSI, kg/cm², mH₂O, inH₂O
• Robust Construction: IP67 rated, vibration and shock resistant
• Easy Operation: Push-button controls with rotatable housing for optimal readability
• Process Connection: 1/4" BSP (BSPP / G 1/4) bottom connection
• Power Supply: Battery operated (2 × AA) with long service life
• EX Version: Available on request

Applications:

• Hydraulic and pneumatic systems
• Plant and OEM equipment
• Pumps and compressors
• Power generation
• Food and beverage processing
• Chemical and petrochemical plants
• Maintenance, commissioning, and calibration work

Optional Features:

• Integrated data logger with USB output
• CSV data export for analysis and reporting
• Custom pressure ranges and configurations
