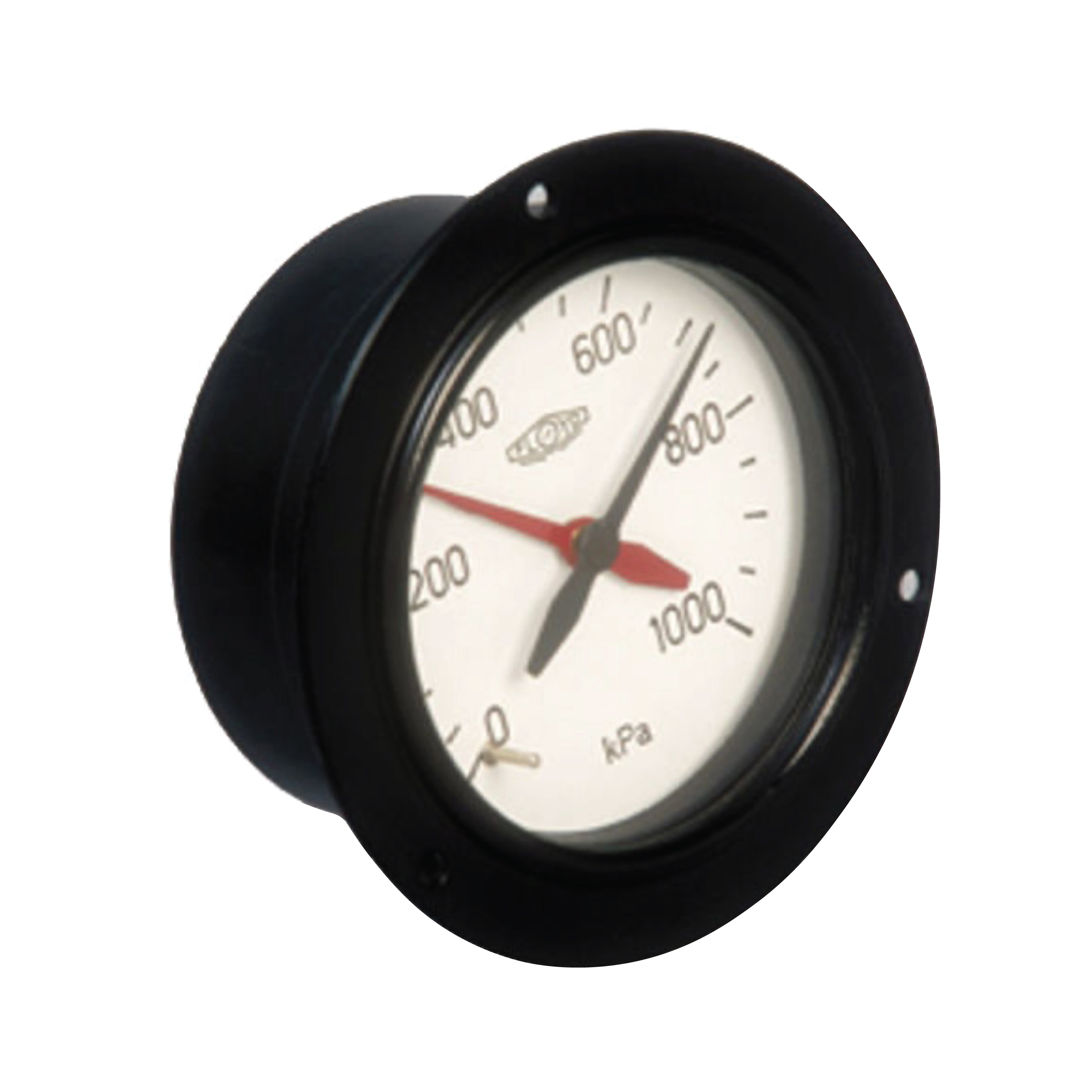

    Close-up image of a duplex pressure gauge with a black aluminium case and two pointers on a white dial face, designed for dual pressure readings in industrial applications.

    Pressure Gauge

    Duplex Pressure Gauges
    Dual Readouts in One Compact Instrument

    Floyd Duplex Pressure Gauges are engineered for precise dual pressure monitoring in a single rugged instrument. Designed with two independent Bourdon tube systems and dual pointers, they provide clear, simultaneous readings—ideal for compact industrial panels, filtration systems, and rail applications.

    Key Features:

    • Dual Bourdon Tubes: Independently measures two pressure sources in one gauge
    • Mounting Options: Available in surface mount, flush mount, or direct mount styles
    • Dial Sizes: 100 mm or 125 mm, with single, dual, or custom scale configurations
    • Robust Construction: IP54-rated brass or aluminium case for mechanical strength and ingress protection
    • Connections: Brass male BSP – ¼″ or ⅜″
    • Accuracy: ±1.0% of full-scale deflection
    • Pressure Ranges: 0–500 kPa to 4,000 kPa

    Note: Not suitable for corrosive or aggressive media due to brass/bronze wetted components.

    Common Applications:

    • Filter inlet and outlet pressure comparison
    • Brake line monitoring in rail transport systems
    • Space-constrained industrial control panels

    Need Customisation?

    Request a quote below for custom scale configurations, dial branding, or panel mounting assistance.

    For the fastest quote turnaround
    Please use the quote form below rather than emailing general enquiries where possible. The form collects the key details needed to quote your gauge correctly and helps reduce follow-up questions.
