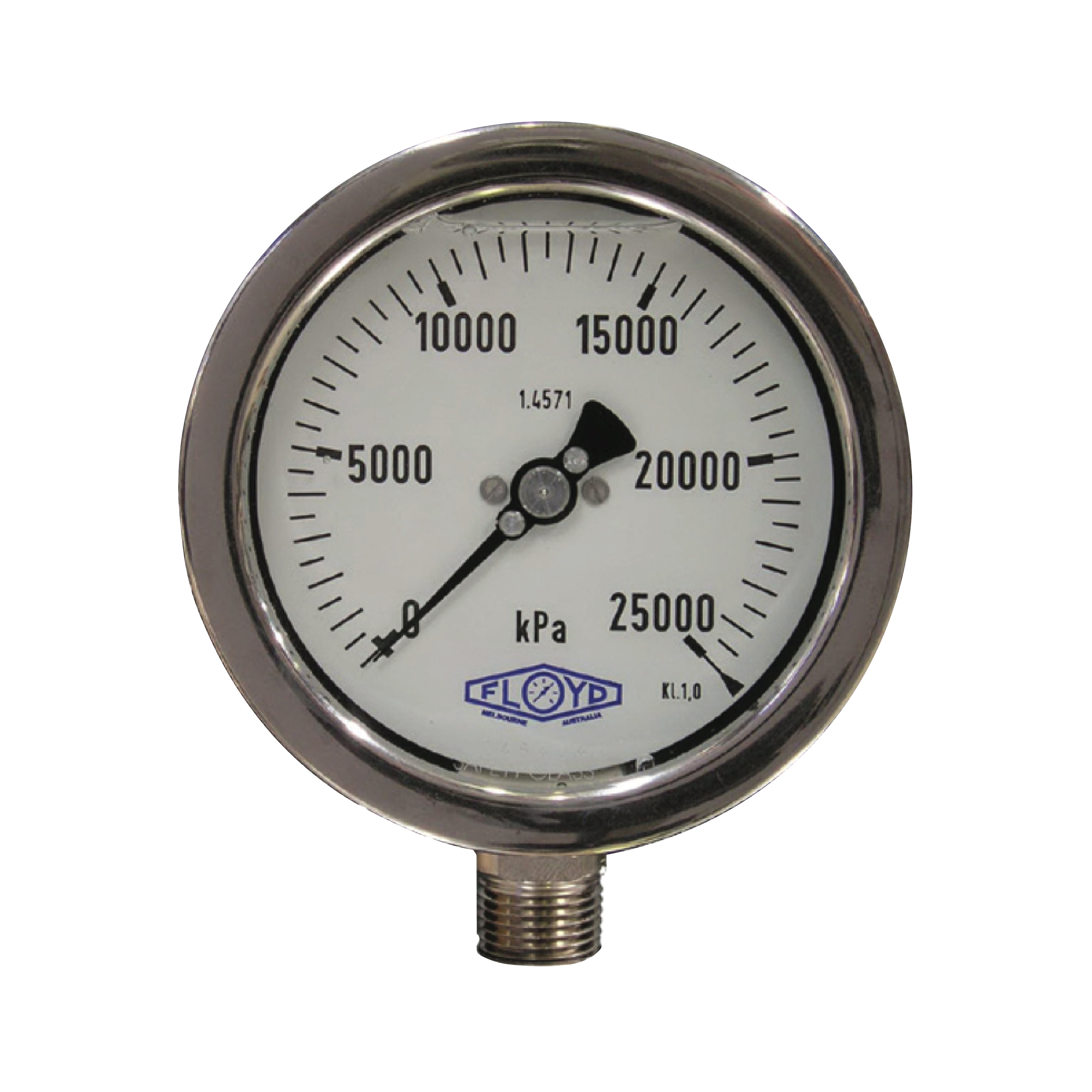

    Stainless steel heavy duty pressure gauge displaying a wide range up to 25,000 kPa, designed for harsh industrial environments and accurate high-pressure measurement.

    Pressure Gauge

    Heavy Duty Pressure Gauges
    Reliable Performance in Harsh Conditions

    Our heavy duty pressure gauges are engineered for demanding industrial environments where durability, accuracy, and corrosion resistance are critical. Constructed entirely from stainless steel, these gauges are ideal for applications involving vibration, pulsation, and aggressive media.

    Technical Features:

    • Pressure Range: -100 kPa to 100,000 kPa
    • Dial Sizes: 63 mm, 100 mm, 160 mm
    • Accuracy:
      • ±1.0% of full scale (100 mm and 160 mm)
      • ±1.6% of full scale (63 mm)
    • Construction:
      • Case: AISI 304 Stainless Steel
      • Wetted Parts: AISI 316L Stainless Steel
      • Bayonet ring design
    • Protection:
      • Laminated safety glass window
      • IP65 rating (when liquid-filled)
    • Mounting Threads:
      • 1/4” BSPT (63 mm)
      • 3/8” or 1/2” BSPT/NPT (100 mm and 160 mm)

    Optional Add-ons:

    • Liquid filling to dampen vibration
    • Red pointer, dual scale, or coloured sectors
    • Electrical contacts for remote signalling
    • Diaphragm seals for aggressive or viscous media
    • Thread adaptors, syphons, and needle valves

    Applications:

    • Mining and resource sector
    • Oil and gas systems
    • Chemical and petrochemical plants
    • Food and beverage processing
    • Marine and offshore environments
    • Water and wastewater treatment
    • Hydraulic and pneumatic control
    • Manufacturing equipment and OEM systems

    Why Choose Our Gauges:

    • 100% stainless steel construction for maximum corrosion resistance
    • Reliable pressure readings under extreme conditions
    • Flexible configuration options for your specific application
    • Trusted performance backed by industry expertise
    For the fastest quote turnaround
    Please use the quote form below rather than emailing general enquiries where possible. The form collects the key details needed to quote your gauge correctly and helps reduce follow-up questions.
    Explore gauge types

    Common Pressure Gauge Types & Applications

    Browse common pressure gauge styles, specialised instruments and gauge protection accessories used across industrial, process, HVAC and custom applications.

    Industrial & General Purpose Gauges

    General purpose pressure gauge General Purpose Pressure Gauges Reliable pressure measurement for industrial, HVAC and general process applications. Heavy duty pressure gauge Heavy Duty Pressure Gauges Stainless steel gauges for harsher environments, vibration and demanding industrial use. Industrial pressure gauges Industrial Pressure Gauges Durable gauges for plant equipment, pumps, compressors and OEM applications. Sub-sea pressure gauge Sub-Sea Pressure Gauges Specialised pressure gauges for marine, offshore and hyperbaric environments.

    Low Pressure Gauges

    Low pressure gauge Low Pressure Gauges Capsule gauges for sensitive air, gas, HVAC and low pressure applications. Schaffer diaphragm pressure gauge Schaffer Diaphragm Gauges Low pressure and slurry media gauges for tank contents, sludge and viscous fluids.

    Specialised, Process & Custom Gauges

    Custom pressure and temperature gauges Custom Gauges & Repairs Custom builds, obsolete replacements, repairs, restorations and special dial work. Safety pattern pressure gauge Safety Pattern Pressure Gauges Operator-protection gauges for high-pressure gas and hazardous applications. Sanitary pressure gauge Sanitary Pressure Gauges Hygienic gauges for food, beverage, dairy, pharmaceutical and CIP/SIP systems.

    Differential & Duplex Pressure Gauges

    Differential pressure gauge Differential Pressure Gauges Monitor pressure drop across filters, pumps, heat exchangers and airflow systems. Duplex pressure gauge Duplex Pressure Gauges Dual pressure readings in one compact gauge for filters, panels and rail systems.

    Refrigeration Pressure Gauges

    Refrigeration pressure gauge Refrigeration Gauges Dual pressure and temperature scale gauges for refrigeration and HVAC systems.

    Digital Gauges & Accessories

    nVision reference recorder nVision Reference Recorder High-accuracy pressure and temperature calibration with recording capability. SIKA digital pressure gauge SIKA Digital Pressure Gauges Digital reference gauges for pressure measurement, testing and calibration work. Diaphragm seals for pressure gauges Diaphragm Seals Protect gauges from corrosive, viscous, abrasive or crystallising media. Snubber pulsation dampener Snubbers & Pulsation Dampeners Help reduce pressure spikes, pulsation and pointer movement in suitable systems. Pressure gauge syphon Pressure Gauge Syphons Protect gauges in steam and high-temperature pressure measurement applications.
    Not sure which gauge you need?
    Request pressure gauge selection assistance
    If you are unsure whether this is the correct gauge, tell us about your application, pressure range, media or existing gauge and our team can help recommend a suitable solution.
