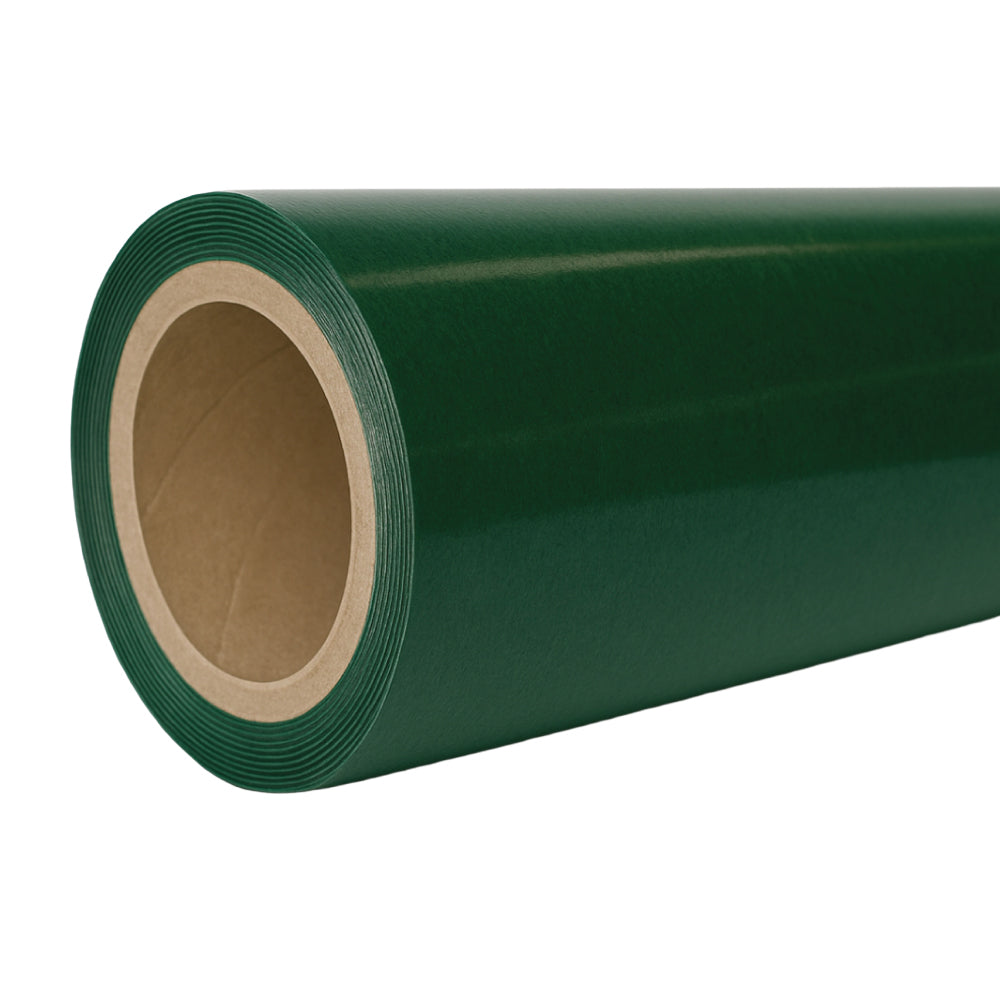

    Roll of green Hy Ply flexible insulation material with cardboard core, used for slot insulation and electrical wrapping, rated up to 120°C.

    Flexible Insulation Laminates

    Hyply Flexible Insulation Laminate
    Versatile Combination Material Rated to 120°C

    Hyply is a flexible, multi-layer electrical insulation material designed for durability, ease of use, and thermal stability. Its construction delivers excellent handling and shaping properties—ideal for use in motor rewinding applications, panel building, and transformer assembly.

    Key Features:

    • Temperature Rating: Suitable for continuous operation up to 120°C (Class E)
    • Flexible & Durable: Conforms easily to tight radii and uneven surfaces
    • Available Thicknesses: 5+2, 7+2, 10+2, 12+2, 14+2, 15+2, 16+2
    • Supplied By: Full rolls or square metre – cut-to-size on request

    Applications:

    Hyply is part of our flexible insulation laminates range and offers a cost-effective solution for electrical systems that don’t require Class F or H performance.

    Need Help Choosing?

    Not sure if Hyply is the right material? See the Hyply vs DMD Comparison, Thickness & Grade Guide and Related Insulation Materials below before requesting a quote.

    FAST SHIPPING
    Australia-wide
    QUALITY
    Products
    EXPERT
    Advice
    AUSTRALIAN
    Owned
    Hyply Thickness & Grade Guide

    Hyply is available in a range of thicknesses to suit different electrical insulation, motor rewinding and template-making applications.

    Grade Nominal Thickness (mm) Typical Use
    5 + 2 0.17 Thin insulation barriers, templates and lightweight electrical applications.
    7 + 2 0.22 General-purpose insulation where flexibility and ease of handling are important.
    10 + 2 0.30 One of the most commonly used grades for motor rewinding and transformer insulation.
    12 + 2 0.35 Applications requiring additional durability and insulation thickness.
    14 + 2 Contact ATS Heavy-duty electrical insulation and switchboard applications.
    15 + 2 Contact ATS Extra-thick insulation for demanding industrial applications.
    16 + 2 0.45 Maximum thickness in the standard range for additional insulation and rigidity.

    14+2 and 15+2 combinations are available. Please contact us to confirm specifications and availability.

    Hyply vs DMD – Which Insulation Should You Choose?

    Hyply and DMD are both flexible electrical insulation materials used in motor rewinding and transformer applications. Hyply is a versatile, economical insulation material suited to general-purpose applications, while DMD offers a higher temperature rating and enhanced mechanical performance.

    Feature Hyply DMD
    Temperature Class Class E (120°C) Class F (150°C)
    Material Type Flexible combination insulation material Flexible electrical insulation laminate
    Flexibility Excellent Excellent
    Typical Applications Motor rewinding, transformer wrapping, switchboards, templates and pattern making Slot, phase and liner insulation in motors, transformers and electrical equipment
    Relative Cost More economical Higher-performance premium option
    Best Choice When General-purpose insulation and flexibility are the priority Higher temperature resistance and Class F performance are required

    Looking for a higher temperature insulation laminate? View our DMD – Dacron / Mylar / Dacron Flexible Insulation .

    Related Flexible Insulation Materials

    Compare Hyply with other flexible electrical insulation materials for higher temperature ratings, motor rewinding applications and specialised electrical insulation systems.
