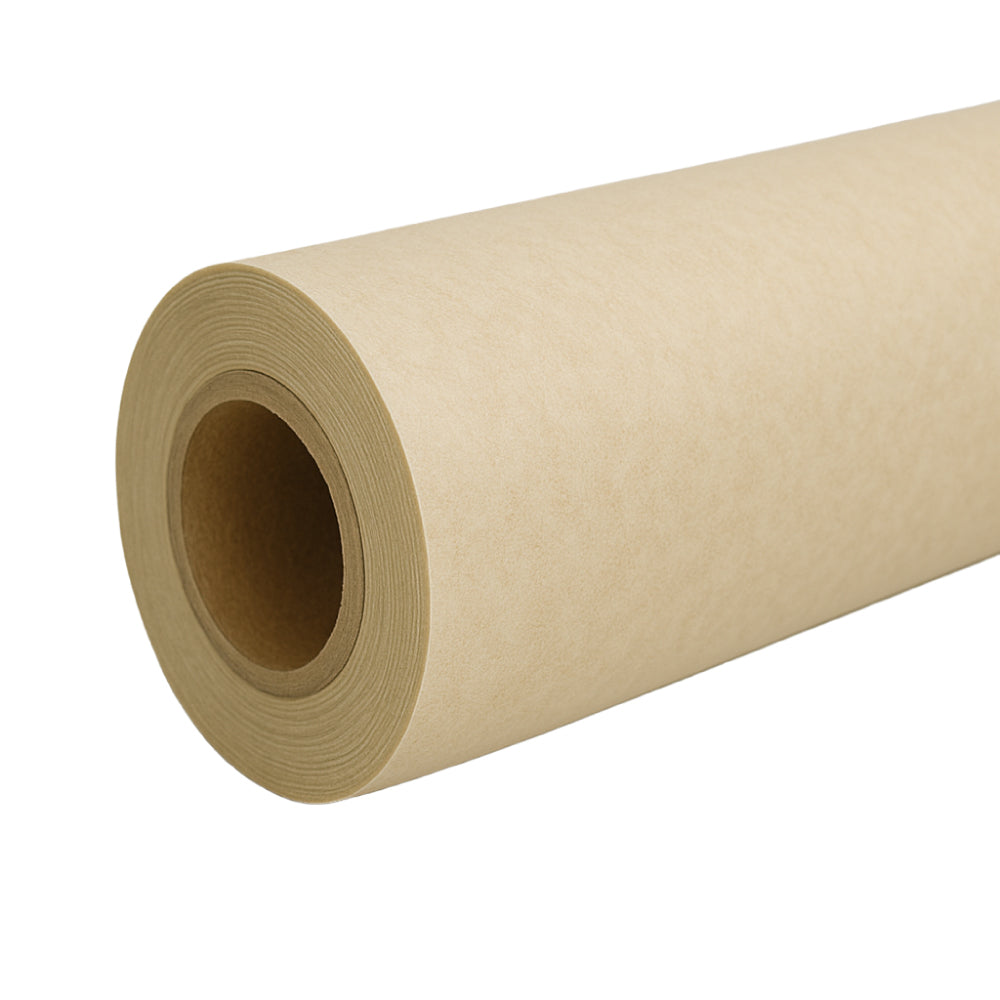

    Roll of Nomex® 410 insulation paper in beige, designed for high-temperature electrical insulation in motors, transformers, and generators.

    Flexible Insulation Laminates

    Nomex® 410 Electrical Insulation Paper
    Aramid-Based Class H Laminate Rated to 220°C

    Nomex® 410 is a premium-grade aramid insulation paper known for its mechanical toughness, thermal stability, and dielectric strength. Widely used across motor rewinding, transformer repair, and industrial electrical builds, it is a dependable material for harsh environments requiring Class H insulation performance.

    Key Features:

    • Thermal Class H (220°C): Handles prolonged high-temperature exposure
    • High Dielectric Strength: Delivers reliable insulation for motors and electrical systems
    • Tear & Puncture Resistant: Retains structure under physical stress
    • Flexible & Conformable: Ideal for wrapping, slot liners, and interlayer insulation
    • Chemical & Moisture Resistant: Maintains performance in harsh environments

    Applications:

    • Electric motor insulation in rewind and repair projects
    • Dry-type transformers and power distribution systems
    • Slot liners, phase insulation, and coil wrapping
    • Layer and barrier insulation in industrial equipment

    Availability:

    • Standard thicknesses: 0.05 mm to 0.76 mm
    • Supplied in rolls or sheet format
    • Custom sizes and slit widths available upon request
    • Roll width: 914 mm

    Nomex® 410 is part of our flexible laminate insulation range. For a complete insulation solution, consider pairing it with our high-temp sleeving or electrical varnishes and resins.

    Need Help Choosing?

    Not sure if Nomex 410 is the right insulation material? See the Nomex 410 vs NMN Comparison and Related Insulation Materials below before requesting a quote.

    FAST SHIPPING
    Australia-wide
    QUALITY
    Products
    EXPERT
    Advice
    AUSTRALIAN
    Owned

    Nomex® 410 vs NMN / NPN – Which Insulation Should You Choose?

    Nomex® 410 and NMN / NPN are both used in Class H electrical insulation systems. Nomex® 410 is a single-layer aramid insulation paper, while NMN / NPN combines Nomex® outer layers with a Mylar® polyester film core for a laminated construction.

    Feature Nomex® 410 NMN / NPN
    Material Type Aramid electrical insulation paper Flexible electrical insulation laminate
    Construction Single-layer Nomex® aramid paper Nomex® / Mylar® / Nomex® laminate
    Temperature Class Class H – up to 220°C Class H – 180°C
    Mechanical Strength Good Higher due to laminated construction
    Typical Applications Slot liners, phase insulation, coil wrapping and transformer insulation Slot, phase and interlayer insulation in Class H motors, generators and transformers
    Best Choice When Thin, flexible aramid insulation paper is required A stronger laminated insulation material is required

    Looking for a laminated Class H insulation material? View our NMN / NPN Flexible Laminate Insulation .

    When Should You Choose Nomex® 410?
    Nomex® 410 is commonly selected when:
    • Thin, flexible insulation is required
    • Slot liners or phase insulation are being replaced
    • Coil wrapping or barrier insulation is needed
    • High thermal endurance is specified
    • Replacing an existing Nomex® insulation system

    Related Flexible Insulation Materials

    Compare Nomex® 410 with other flexible electrical insulation materials for laminated Class H insulation, Class F systems and thin film applications.
