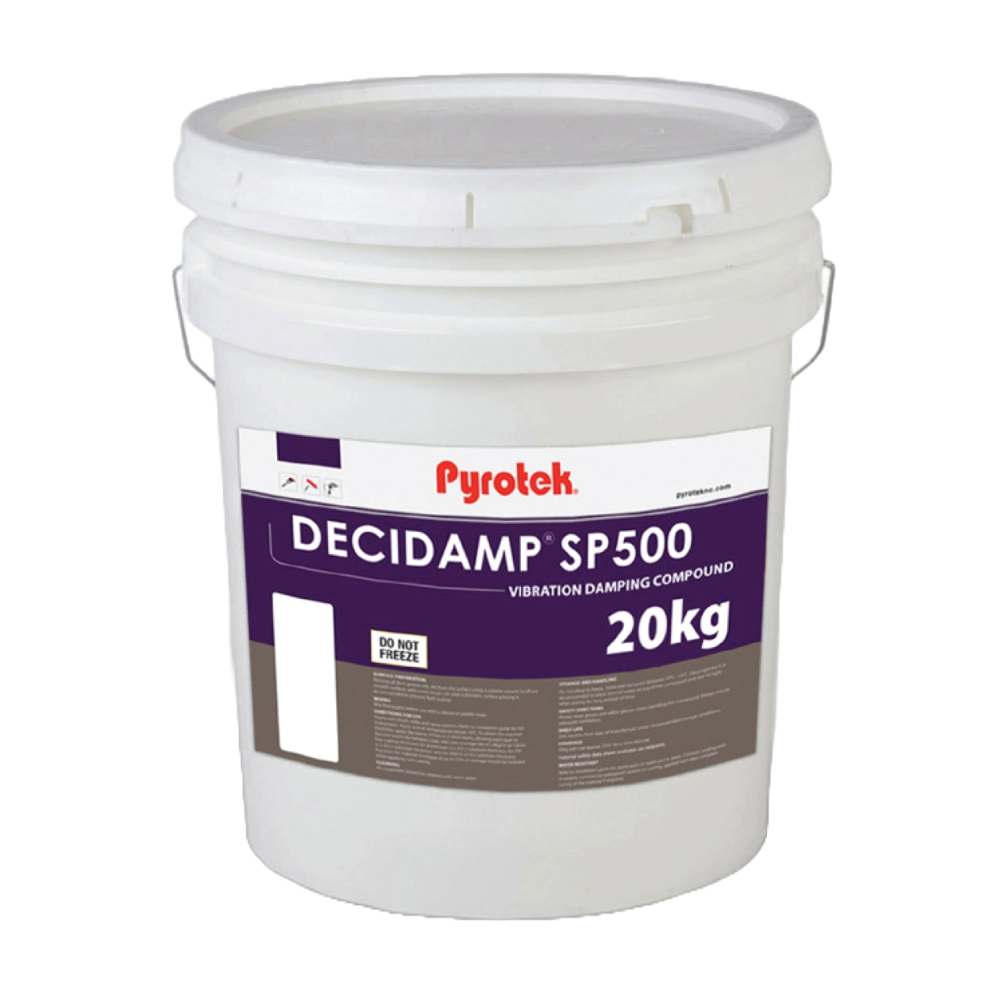

    Decidamp SP500 premium water-based vibration damping compound – 20kg pail for rail and transport

    VIBRATION DAMPING COMPOUND

    Decidamp® SP500
    Premium Water-Based Vibration Damping for Rail & Transport Applications

    Decidamp® SP500 is a premium-grade, water-based vibration damping compound developed for demanding rail and heavy transport environments. With EN 45545 railway fire safety compliance, it delivers outstanding acoustic damping while also sealing and protecting structural underbodies, panels and enclosures.

    Coverage Information

    • 1 mm dry film thickness (DFT) requires approximately 1.5 kg/m².
    • A 20 kg pail provides approximately 13.3 m² coverage at 1 mm DFT.

    Key Benefits:

    • Certified to EN 45545 railway fire safety standards
    • Designed for both interior and exterior transport use
    • Excellent adhesion to steel, aluminium, fibreglass and stainless steel
    • Lightweight coating with high chip resistance
    • UV, water and impact resistant finish
    • Reduces noise, vibration and dynamic structural wear

    Suitable Substrates & Materials

    Steel

    • Structural steel
    • Roofing
    • Ducting
    • Machinery

    Aluminium

    • Panels
    • Enclosures
    • Transport equipment

    GRP / FRP

    • Composite panels
    • Structural composites

    Fibreglass

    • Panels
    • Mouldings
    • Acoustic components

    Typical Uses: Rail carriages, underbody protection, body panels, cabin walls and roofing, locomotive shells, machinery enclosures, HVAC and plant rooms, buses, trucks and other heavy vehicles requiring durable vibration damping.

    Available in 20 kg pails. Standard grey, with custom colours available.

    Need Help Estimating the Quantity?

    Scroll down to use the coverage calculator, coverage table and installation guide before requesting a quote.


    FAST SHIPPING
    Australia-wide
    QUALITY
    Products
    EXPERT
    Advice
    AUSTRALIAN
    Owned

    Decidamp® SP500 Coverage Calculator

    Enter your area and required dry film thickness below. The calculator will automatically estimate the material required and the number of 20 kg Decidamp® SP500 pails needed.

    m²
    mm DFT

    Results

    Estimated material required
    — kg
    Estimated pails required
    — pails
    Estimated coverage
    — m²

    Allow extra material where surfaces are uneven, porous, damaged, difficult to coat or where multiple coats are required.

    Important note: For floors with varying depths (for example, 1–25 mm), estimate the average finished thickness across the floor rather than using the deepest point. The more accurately the average thickness is estimated, the more accurate the calculated quantity will be.

    Note: Results are estimates only and should be used as a guide. Customers are responsible for determining the quantity required for their specific application.

    How Much Will One 20 kg Pail Cover? ▾

    Already know your required dry film thickness (DFT)? Use this quick reference table to estimate the coverage provided by a single 20 kg pail of Decidamp® SP500.

    Dry Film Thickness (DFT) Coverage per 20 kg Pail
    1 mm13.3 m²
    2 mm6.7 m²
    3 mm4.4 m²
    4 mm3.3 m²
    5 mm2.7 m²
    6 mm2.2 m²
    Note: Coverage is based on the published consumption rate of approximately 1.5 kg/m² per 1 mm DFT. Actual coverage may vary depending on substrate condition, application method and wastage.
    Application & Installation Guide ▾

    Helpful application information for Decidamp® SP500. Always refer to the installation guide or discuss your project with us if you require application-specific advice.

    Spray

    Large areas and consistent coating thickness.

    Roller

    Flat panels, ducting and fabricated components.

    Brush

    Edges, corners and touch-up work.

    Trowel

    High-build applications requiring greater coating thickness.

    Typical Drying & Cure Times

    Ambient Temperature Dry to Touch Fully Cured
    20–25°C 2–3 hours 14–24 hours
    26–30°C 1–2 hours 12–24 hours
    31–36°C 1–2 hours 12–20 hours

    Application Tips

    • Ensure the substrate is clean, dry and free from grease, oil and loose contaminants.
    • Prime steel substrates where recommended to minimise the risk of flash rusting.
    • Mix thoroughly before application to ensure a consistent coating.
    • Allow the coating to dry naturally between coats and before placing into service.
    • Where the finished coating will be exposed to regular moisture or weather, apply a suitable waterproof topcoat.

    Explore the Decidamp® Range

    Compare the Decidamp® range to find the most suitable vibration damping solution for your application.

    SP Series – Water-Based Damping Coatings

    DC Series – Constrained Layer Damping

    Decidamp DC06 constrained layer damping compound
    Decidamp® DC06

    Heavy-duty constrained layer damping.

     Decidamp DC30 polyurethane constrained layer damping compound
    Decidamp® DC30

    High-performance polyurethane CLD compound.

    SLC – Self-Levelling Flooring Compound

    Decidamp SLC self-levelling flooring compound
    Decidamp® SLC

    Self-levelling vibration damping compound for floors and decks.
